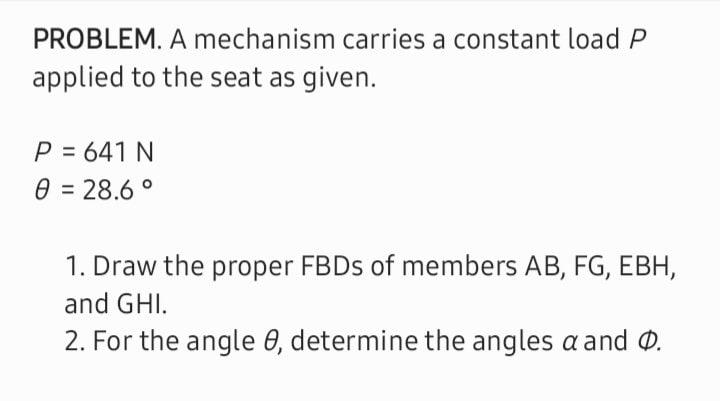

PROBLEM. A mechanism carries a constant load P applied to the seat as given. P = 641 N 0 = 28.6° 1. Draw the proper FBDs of members AB, FG, EBH, and GHI. 2. For the angle 8, determine the angles a and O.
E 100 175 400 800 TO LBE C This is not your operty so do not use it in any way as if it were you w This is not way as it were your own. E 150 D vodoproperty so do not us00 in any 175 0 B 150 200 Dimensions in millimeters G H This is not your property so do not use it in any way as if it were your P 150 I
