The simply supported beam consists of a W460 × 82 structural steel wide-flange shape [E = 200 GPa; 1 = 370 × 106 mm4]. F

Post by answerhappygod »

The Simply Supported Beam Consists Of A W460 82 Structural Steel Wide Flange Shape E 200 Gpa 1 370 106 Mm4 F 1
The Simply Supported Beam Consists Of A W460 82 Structural Steel Wide Flange Shape E 200 Gpa 1 370 106 Mm4 F 1 (48.71 KiB) Viewed 36 times

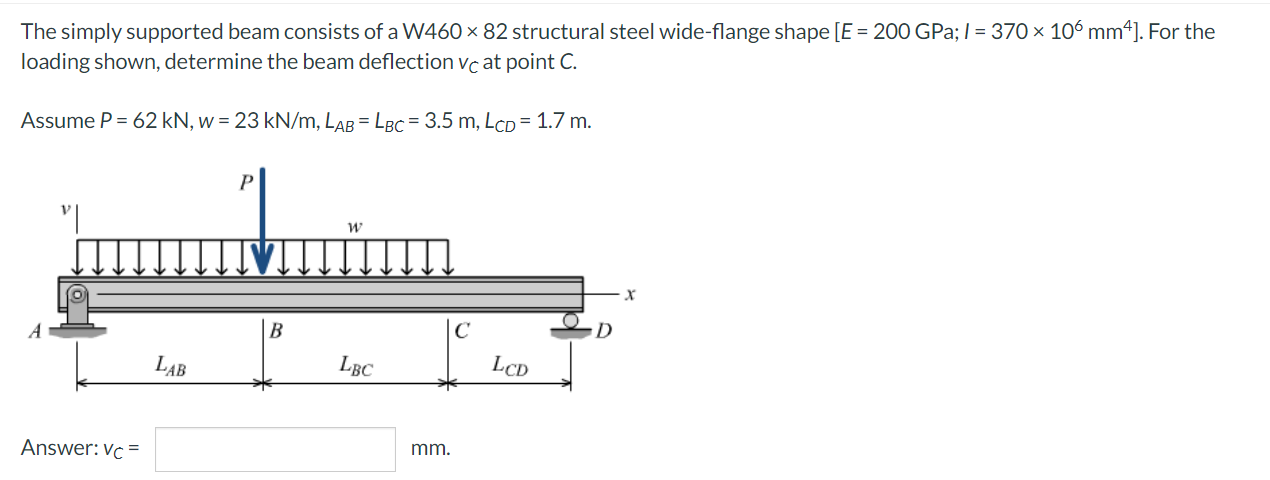

The simply supported beam consists of a W460 × 82 structural steel wide-flange shape [E = 200 GPa; 1 = 370 × 106 mm4]. For the loading shown, determine the beam deflection vc at point C. Assume P = 62 kN, w = 23 kN/m, LAB = LBC = 3.5 m, LcD = 1.7 m. W X с LAB LBC Answer: Vc = B mm. LCD D
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
