The simply supported beam consists of a W14 × 34 structural steel wide-flange shape [E = 29,000 ksi; I = 340 in.4]. For

Post by answerhappygod »

The Simply Supported Beam Consists Of A W14 34 Structural Steel Wide Flange Shape E 29 000 Ksi I 340 In 4 For 1
The Simply Supported Beam Consists Of A W14 34 Structural Steel Wide Flange Shape E 29 000 Ksi I 340 In 4 For 1 (99.02 KiB) Viewed 39 times

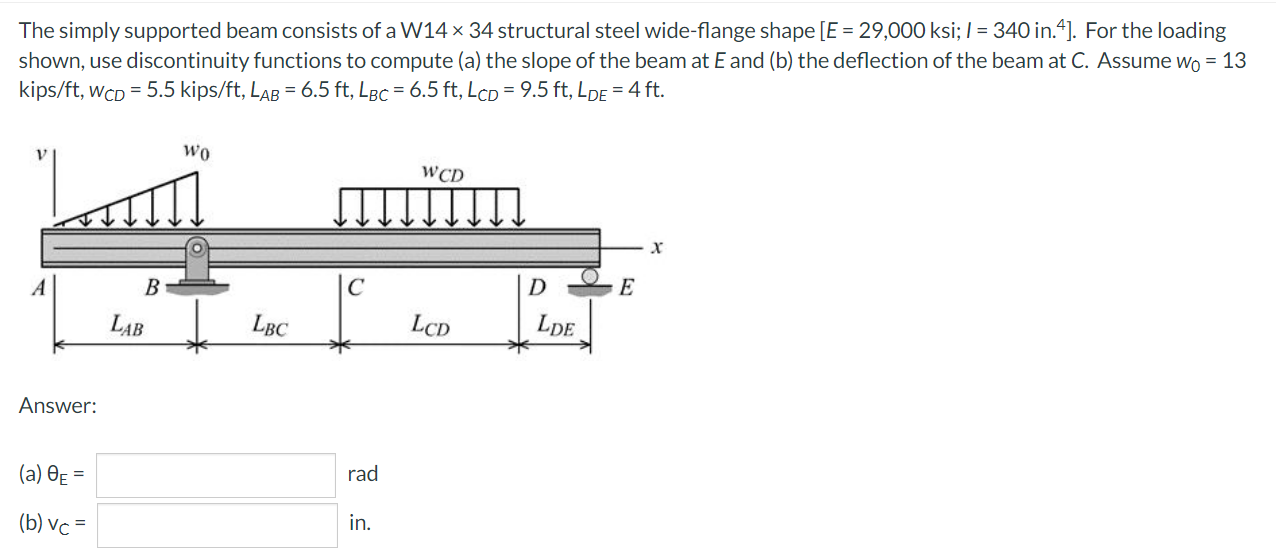

The simply supported beam consists of a W14 × 34 structural steel wide-flange shape [E = 29,000 ksi; I = 340 in.4]. For the loading shown, use discontinuity functions to compute (a) the slope of the beam at E and (b) the deflection of the beam at C. Assume wo = 13 kips/ft, WCD = 5.5 kips/ft, LAB = 6.5 ft, LBC = 6.5 ft, LcD = 9.5 ft, LDE = 4 ft. WCD Lam X B LAB Answer: (a) 8E = (b) vc = LBC rad in. LCD D LDE E
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
