- Determine The State Of Stress At Point A Of The Rectangular Post Shown Loaded With Concentrated Forces Directed Along Th 1 (84.36 KiB) Viewed 40 times

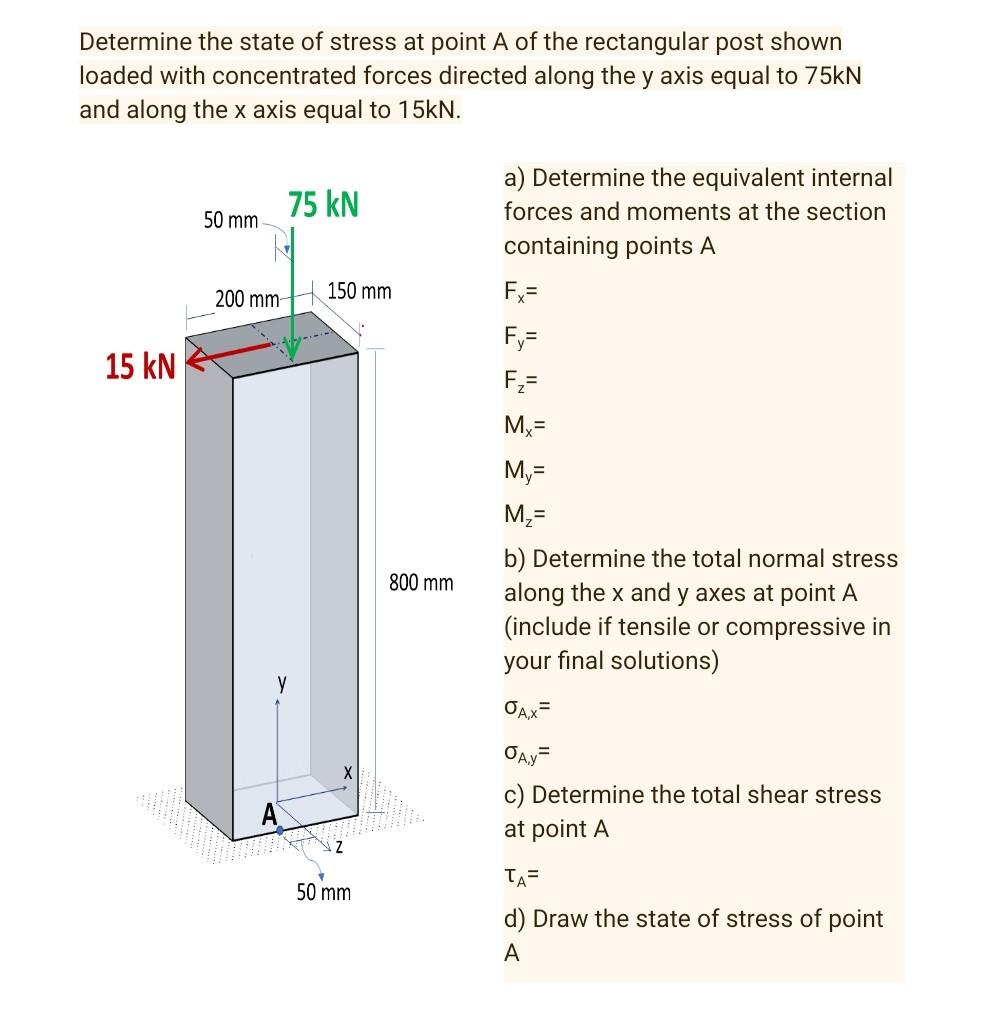

Determine the state of stress at point A of the rectangular post shown loaded with concentrated forces directed along the y axis equal to 75kN and along the x axis equal to 15kN. 75 kN a) Determine the equivalent internal forces and moments at the section containing points A 50 mm Fx= Fy= F₂= Mx= My= M₂= b) Determine the total normal stress along the x and y axes at point A (include if tensile or compressive in your final solutions) OA,x= OA,y c) Determine the total shear stress at point A TA= d) Draw the state of stress of point A 15 kN 200 mm- A 150 mm 50 mm 800 mm
