For the given truss: Determine all the zero-force members. Use the method of section to find the force in members QU and

[answerhappygod]

For The Given Truss Determine All The Zero Force Members Use The Method Of Section To Find The Force In Members Qu And 1 (48.94 KiB) Viewed 51 times

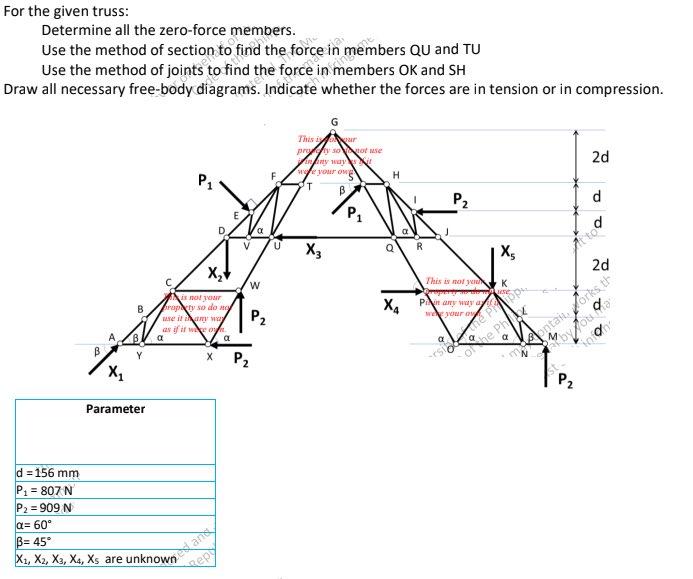

For the given truss: Determine all the zero-force members. Use the method of section to find the force in members QU and TU Use the method of joints s to find the force in members OK and SH Draw all necessary free-body diagrams. Indicate whether the forces are in tension or in compression. G This is our pruty sootuse 2d ny ways t we your ow P₁ T B P₂ d R This is not you Qroperty to the Pin any way a we your ow a B B X₂ is not your rapety so do no use it any way as if it we o A X₁ Parameter d=156 mm P₁ = 807 N P₂=909 N a= 60° B= 45° X1, X2, X3, X4, Xs are unknowns and Rep a D W P₂ a X P₂ F U X3 P₁ H Q X4 X5 K use of the Phil Q Attoo M 2d by you a infon
