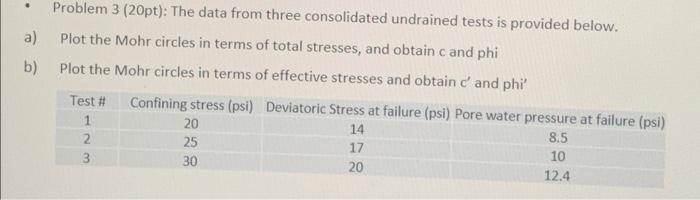

- Problem 3 20pt The Data From Three Consolidated Undrained Tests Is Provided Below Plot The Mohr Circles In Terms Of 1 (17.32 KiB) Viewed 36 times
Problem 3 (20pt): The data from three consolidated undrained tests is provided below. Plot the Mohr circles in terms of
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Problem 3 (20pt): The data from three consolidated undrained tests is provided below. Plot the Mohr circles in terms of
Problem 3 (20pt): The data from three consolidated undrained tests is provided below. Plot the Mohr circles in terms of total stresses, and obtain c and phi a) b) Plot the Mohr circles in terms of effective stresses and obtain c' and phi' Test # Confining stress (psi) Deviatoric Stress at failure (psi) Pore water pressure at failure (psi) 1 20 14 8.5 25 17 10 30 20 12.4 2 3
