A timber frame for a restaurant has a secondary column supported by a main beam as shown in Figure 4b. The restaurant is

Post by answerhappygod »

A Timber Frame For A Restaurant Has A Secondary Column Supported By A Main Beam As Shown In Figure 4b The Restaurant Is 1
A Timber Frame For A Restaurant Has A Secondary Column Supported By A Main Beam As Shown In Figure 4b The Restaurant Is 1 (53.7 KiB) Viewed 32 times

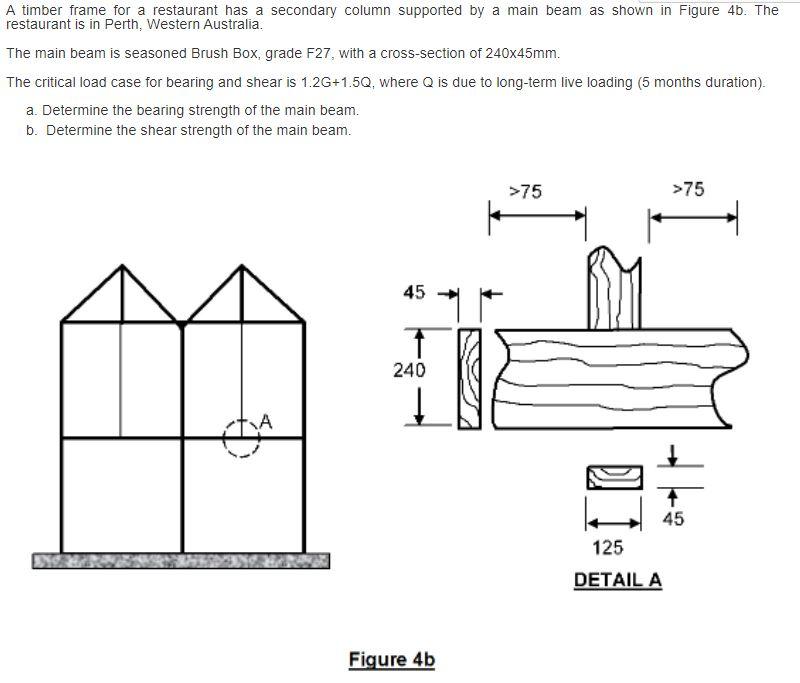

A timber frame for a restaurant has a secondary column supported by a main beam as shown in Figure 4b. The restaurant is in Perth, Western Australia. The main beam is seasoned Brush Box, grade F27, with a cross-section of 240x45mm. The critical load case for bearing and shear is 1.2G+1.5Q, where Q is due to long-term live loading (5 months duration). a. Determine the bearing strength of the main beam. b. Determine the shear strength of the main beam. >75 >75 A 45 T 240 Figure 4b + 45 125 DETAIL A
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
