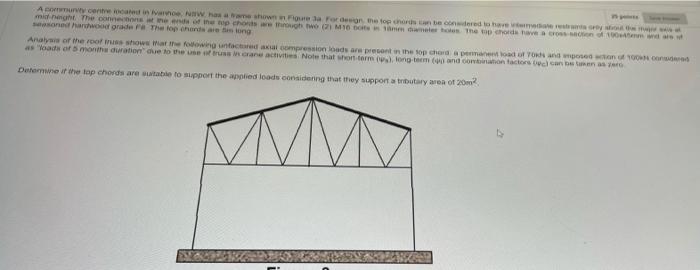

p mag wat A community centre located in Ivanhoe, NOW has a rame shown in Figure 3a For design the top chords can be considered to have vermediate restras orby so mid-height. The connections at the ends of the top chords are through two (2) M10 bots in 18mm diameter holes. The top chords have a cross-section of 100x45mm and are seasoned hardwood grade Fa The top chords are in long Analysis of the roof truss shows that the following unfactored axial compression loads are present in the top chord a permanent load of 70ks and mposed action of 100KN considerad as loads of 5 months duration due to the use of truss in crane activities Note that short-term (s), long-term (40 and combination factors (c) can be taken as Determine if the top chords are suitable to support the applied loads considering that they support a tributary area of 20m²
A community centre located in Ivanhoe, NSW, has a trame shown in Figure 3a. For design, the top chords can be considered to have intermediate resorty about the map mid-height. The connections at the ends of the top chords are through two (2) M10 bolts in 16mm diameter holes The top chords have a cross-section of 100mm and we of seasoned hardwood grade FB. The top chords are om long Analysis of the roof truss shows that the following unfactored axial compression loads are present in the top chord a permanent load of 70AN and imposed action of 100kN considered as loads of 5 months duration due to the use of truss in crane activities. Note that short-term (g), long-term (u) and combination factors (ve) can be taken as re Determine if the top chords are suitable to support the applied loads considering that they support a tributary area of 20m²

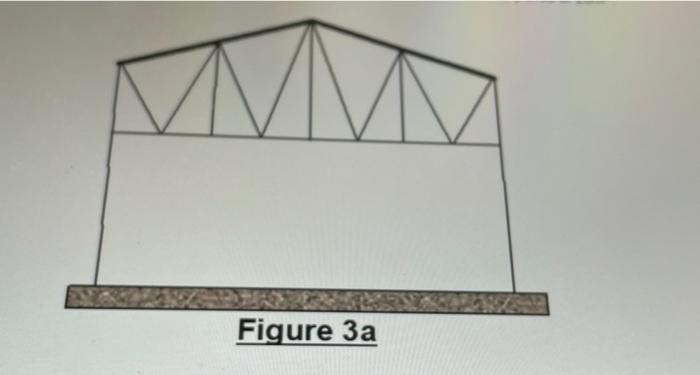

Figure 3a
