QUESTION 15 A timber frame for a restaurant has a secondary column supported by a main beam as shown in Figure 4b. The r

Post by answerhappygod »

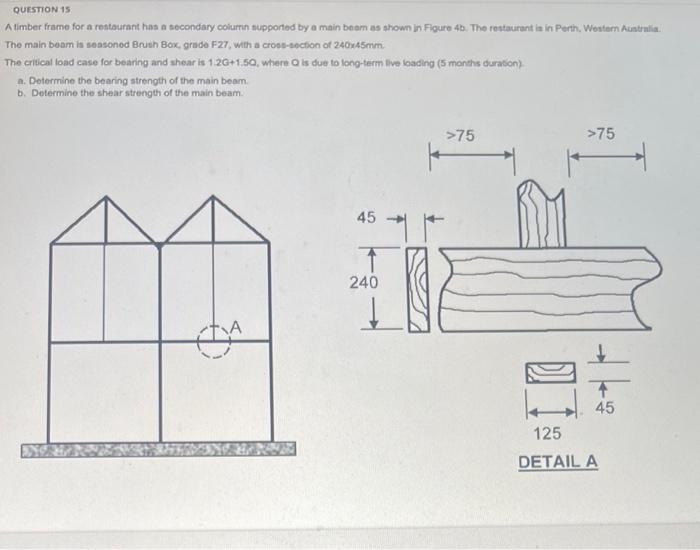

Question 15 A Timber Frame For A Restaurant Has A Secondary Column Supported By A Main Beam As Shown In Figure 4b The R 1
Question 15 A Timber Frame For A Restaurant Has A Secondary Column Supported By A Main Beam As Shown In Figure 4b The R 1 (33.59 KiB) Viewed 42 times
QUESTION 15 A timber frame for a restaurant has a secondary column supported by a main beam as shown in Figure 4b. The restaurant is in Perth, Western Australia. The main beam is seasoned Brush Box, grade F27, with a cross-section of 240x45mm. The critical load case for bearing and shear is 1.20+1.50, where Q is due to long-term live loading (5 months duration) a. Determine the bearing strength of the main beam. b. Determine the shear strength of the main beam. >75 >75 45 A 1 240 → 45 125 DETAIL A
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
