4. Use Castigliano's theorem to find the vertical and horizontal deflections at joint C of the truss given below. Use E=

Post by answerhappygod »

4 Use Castigliano S Theorem To Find The Vertical And Horizontal Deflections At Joint C Of The Truss Given Below Use E 1
4 Use Castigliano S Theorem To Find The Vertical And Horizontal Deflections At Joint C Of The Truss Given Below Use E 1 (93.12 KiB) Viewed 69 times

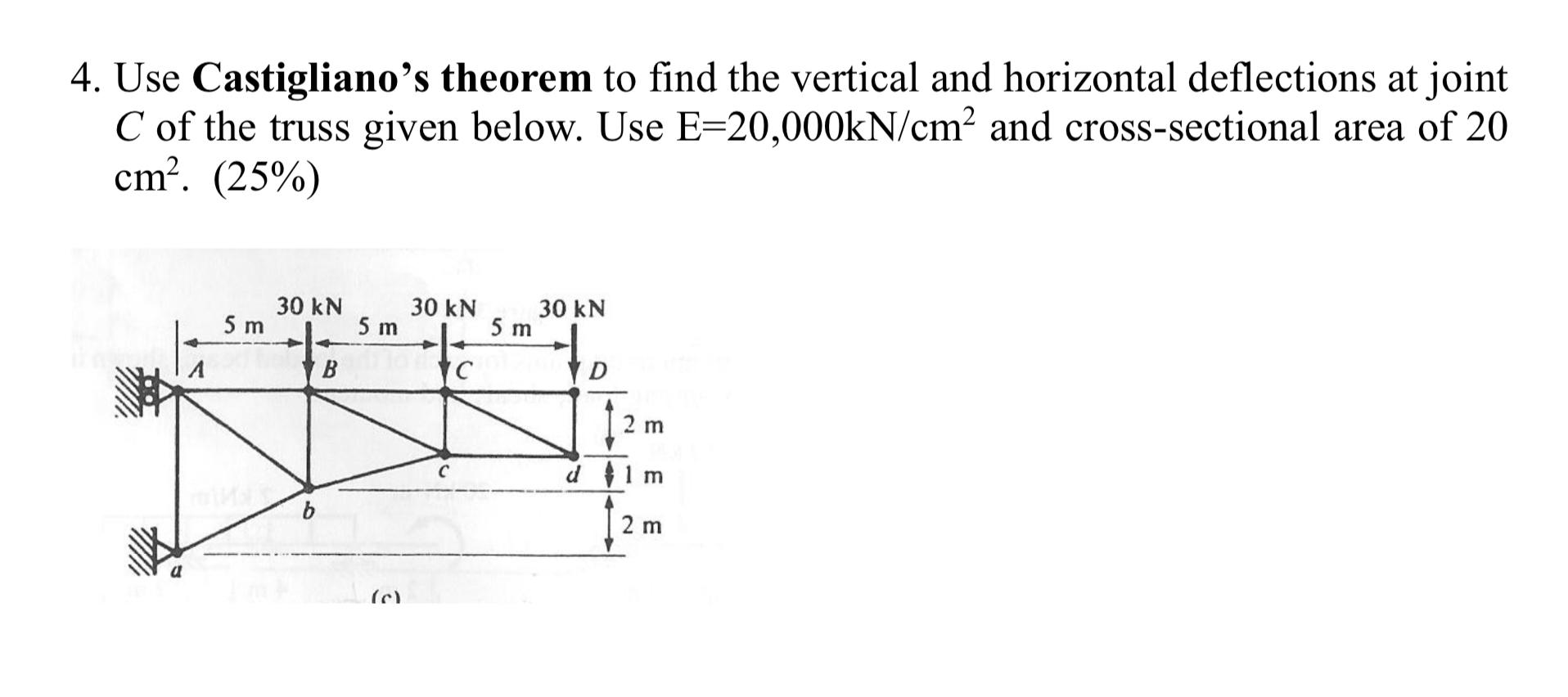

4. Use Castigliano's theorem to find the vertical and horizontal deflections at joint C of the truss given below. Use E=20,000kN/cm² and cross-sectional area of 20 cm². (25%) 30 kN 30 kN 30 kN 5 m to B C D b 5 m (c) 5 m 3 2 m 3 12 m
