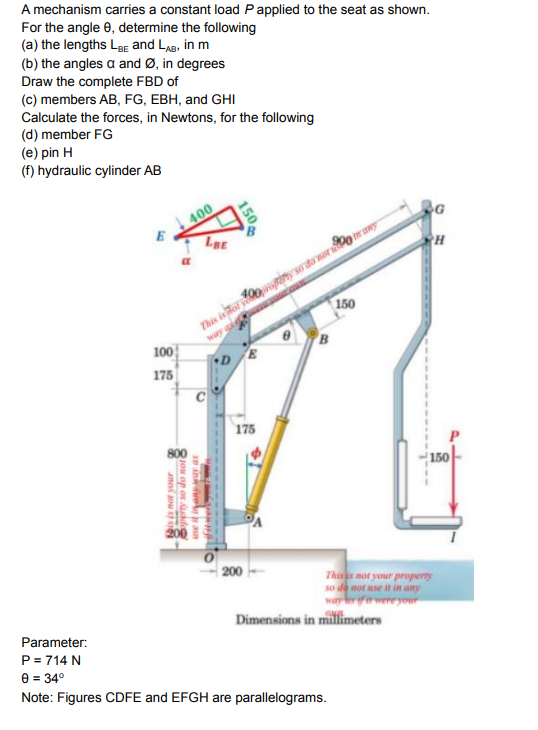

A mechanism carries a constant load P applied to the seat as shown. For the angle 8, determine the following (a) the lengths LBE and LAB, in m (b) the angles a and Ø, in degrees Draw the complete FBD of (c) members AB, FG, EBH, and GHI Calculate the forces, in Newtons, for the following (d) member FG (e) pin H (f) hydraulic cylinder AB E 100 175 anos ou 400 perty so do not c LBE This is not property so do nor any way 150 D C Sofas 150 E 175 200 Dimensions in millimeters H Thisks not your property so do not use it in any way as if it were your Parameter: P = 714 N 0 = 34⁰ Note: Figures CDFE and EFGH are parallelograms.
Do not round off intermediate values when using them to solve subsequent values; however, they may be written up to 4 decimal places in your answer sheets. Final answers should be rounded off up to 4 DECIMAL PLACES.
