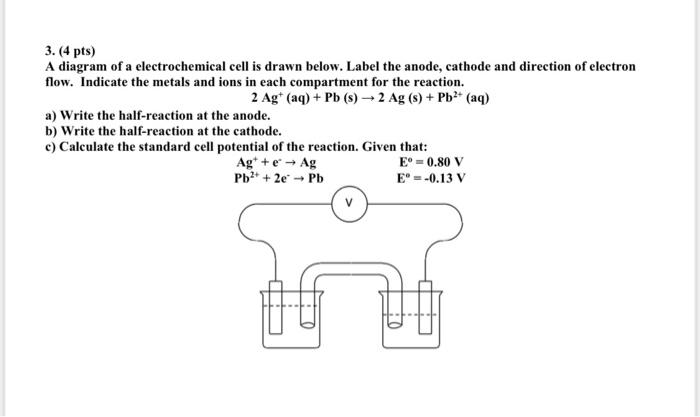

3. (4 pts) A diagram of a electrochemical cell is drawn below. Label the anode, cathode and direction of electron flow.

[answerhappygod]

3 4 Pts A Diagram Of A Electrochemical Cell Is Drawn Below Label The Anode Cathode And Direction Of Electron Flow 1 (23.98 KiB) Viewed 24 times

3. (4 pts) A diagram of a electrochemical cell is drawn below. Label the anode, cathode and direction of electron flow. Indicate the metals and ions in each compartment for the reaction. 2 Agt (aq) + Pb (s)→2 Ag (s) + Pb²+ (aq) a) Write the half-reaction at the anode. b) Write the half-reaction at the cathode. c) Calculate the standard cell potential of the reaction. Given that: Eº = 0.80 V Ag + e → Ag Pb²+ + 2e → Pb E = -0.13 V
