b) The sub-threshold ID-Vas curves of a MOSFET are shown in the Figure below before and after stressing the device. Dete

Post by answerhappygod »

B The Sub Threshold Id Vas Curves Of A Mosfet Are Shown In The Figure Below Before And After Stressing The Device Dete 1
B The Sub Threshold Id Vas Curves Of A Mosfet Are Shown In The Figure Below Before And After Stressing The Device Dete 1 (36.12 KiB) Viewed 35 times

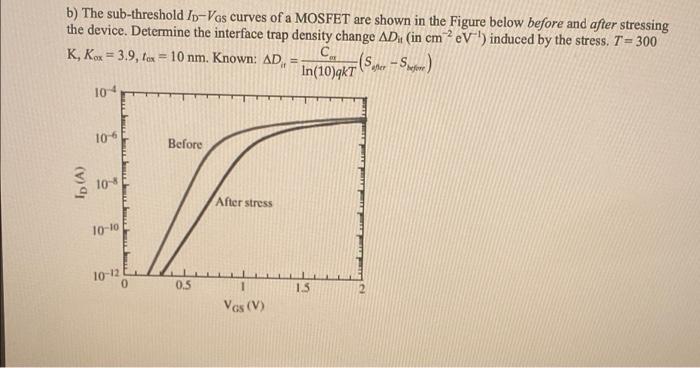

b) The sub-threshold ID-Vas curves of a MOSFET are shown in the Figure below before and after stressing the device. Determine the interface trap density change AD (in cm2 eV) induced by the stress. T=300 C K, Kox= 3.9, fax = 10 nm. Known: AD=- (Saper-Shefore) In(10)qkT 104 Before ID (A) 10-6 10 10-10 10-12 hou have ha 0 0.5 After stress VGS (V) 1.5
