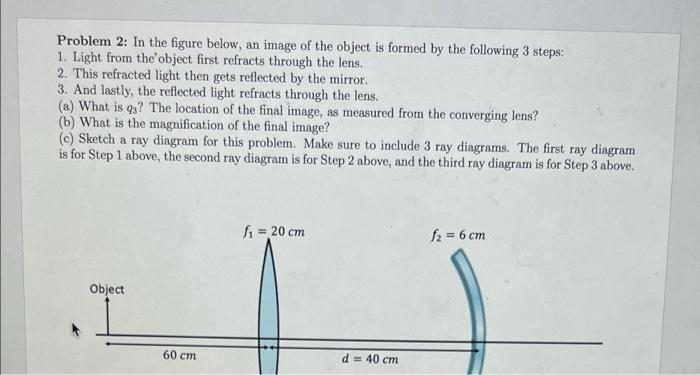

Problem 2: In the figure below, an image of the object is formed by the following 3 steps: 1. Light from the object first refracts through the lens. 2. This refracted light then gets reflected by the mirror. 3. And lastly, the reflected light refracts through the lens. (a) What is qs? The location of the final image, as measured from the converging lens? (b) What is the magnification of the final image? (c) Sketch a ray diagram for this problem. Make sure to include 3 ray diagrams. The first ray diagram is for Step 1 above, the second ray diagram is for Step 2 above, and the third ray diagram is for Step 3 above. f₁ = 20 cm f₂ = 6 cm Object 60 cm d = 40 cm
