Select a southern pine (S4S) timber beam (lightest) for the conditions shown which will not fail in bending or shear and

Post by answerhappygod »

Select A Southern Pine S4s Timber Beam Lightest For The Conditions Shown Which Will Not Fail In Bending Or Shear And 1
Select A Southern Pine S4s Timber Beam Lightest For The Conditions Shown Which Will Not Fail In Bending Or Shear And 1 (31.29 KiB) Viewed 45 times

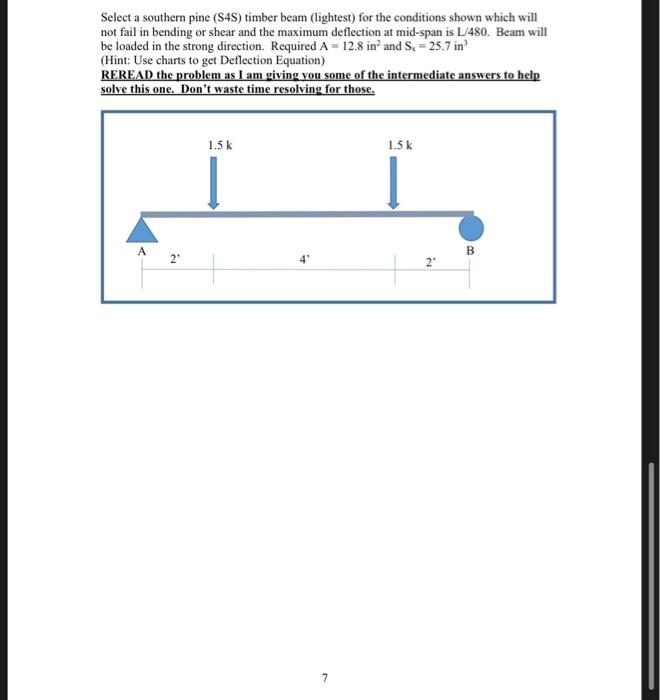

Select a southern pine (S4S) timber beam (lightest) for the conditions shown which will not fail in bending or shear and the maximum deflection at mid-span is L/480. Beam will be loaded in the strong direction. Required A = 12.8 in² and S, = 25.7 in³ (Hint: Use charts to get Deflection Equation) REREAD the problem as I am giving you some of the intermediate answers to help solve this one. Don't waste time resolving for those. 1.5 k 1.5 k 4' A 2' 7 2° B
