4,4 11. 111. 150 Ω www 100 Ω www 200 ΩΣ 6.0 V Figure 1 The circuit shown above is constructed with two 6.0 V batteries a
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4,4 11. 111. 150 Ω www 100 Ω www 200 ΩΣ 6.0 V Figure 1 The circuit shown above is constructed with two 6.0 V batteries a

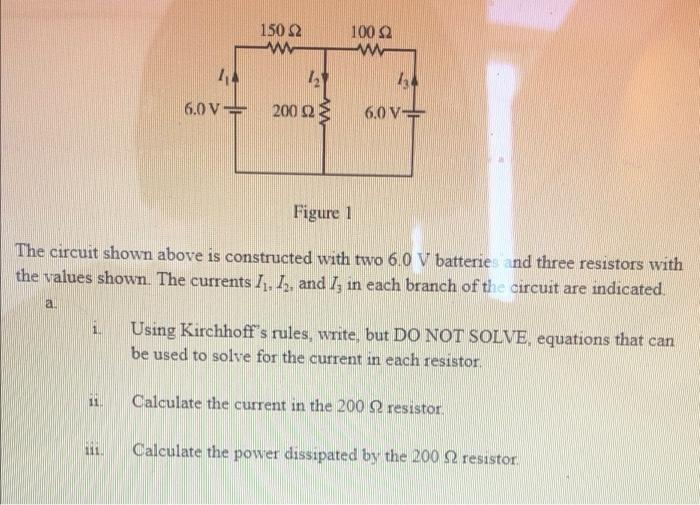

4,4 11. 111. 150 Ω www 100 Ω www 200 ΩΣ 6.0 V Figure 1 The circuit shown above is constructed with two 6.0 V batteries and three resistors with the values shown. The currents I₁, I2, and I, in each branch of the circuit are indicated. Using Kirchhoff's rules, write, but DO NOT SOLVE, equations that can be used to solve for the current in each resistor. Calculate the current in the 200 Q2 resistor. Calculate the power dissipated by the 200 resistor. 134 6.0 V
