The 500-lb beam is supported at A and B when it is subjected to a force of P-900 lb as shown. (Figure 1) Figure <1 of 1

[answerhappygod]

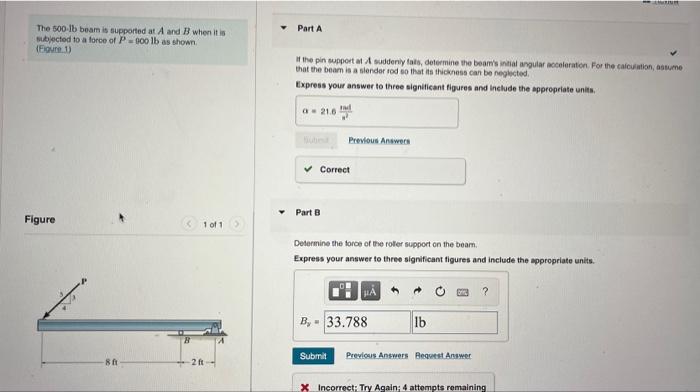

The 500 Lb Beam Is Supported At A And B When It Is Subjected To A Force Of P 900 Lb As Shown Figure 1 Figure 1 Of 1 1 (27.67 KiB) Viewed 45 times

The 500-lb beam is supported at A and B when it is subjected to a force of P-900 lb as shown. (Figure 1) Figure <1 of 1 -2 ft- 8ft MINH Part A If the pin support at A suddenly fails, determine the beam's initial angular acceleration. For the calculation, assume that the beam is a slender rod so that its thickness can be neglected. Express your answer to three significant figures and include the appropriate units. Ind a 21.6 Previous Answers ✓ Correct Part B Determine the force of the roller support on the bear. Express your answer to three significant figures and include the appropriate units. μA ? B,= 33.788 lb Submit Previous Answers Request Answer X Incorrect: Try Again; 4 attempts remaining
