- Consider The 3 Link Crank Mechanism That We Analyzed In Exam 3 O And C Are Fixed Points Crank Cb Rotates With Constan 1 (101.54 KiB) Viewed 46 times
Consider the 3 link crank mechanism that we analyzed in Exam #3. O and C are fixed points. Crank CB rotates with constan
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Consider the 3 link crank mechanism that we analyzed in Exam #3. O and C are fixed points. Crank CB rotates with constan

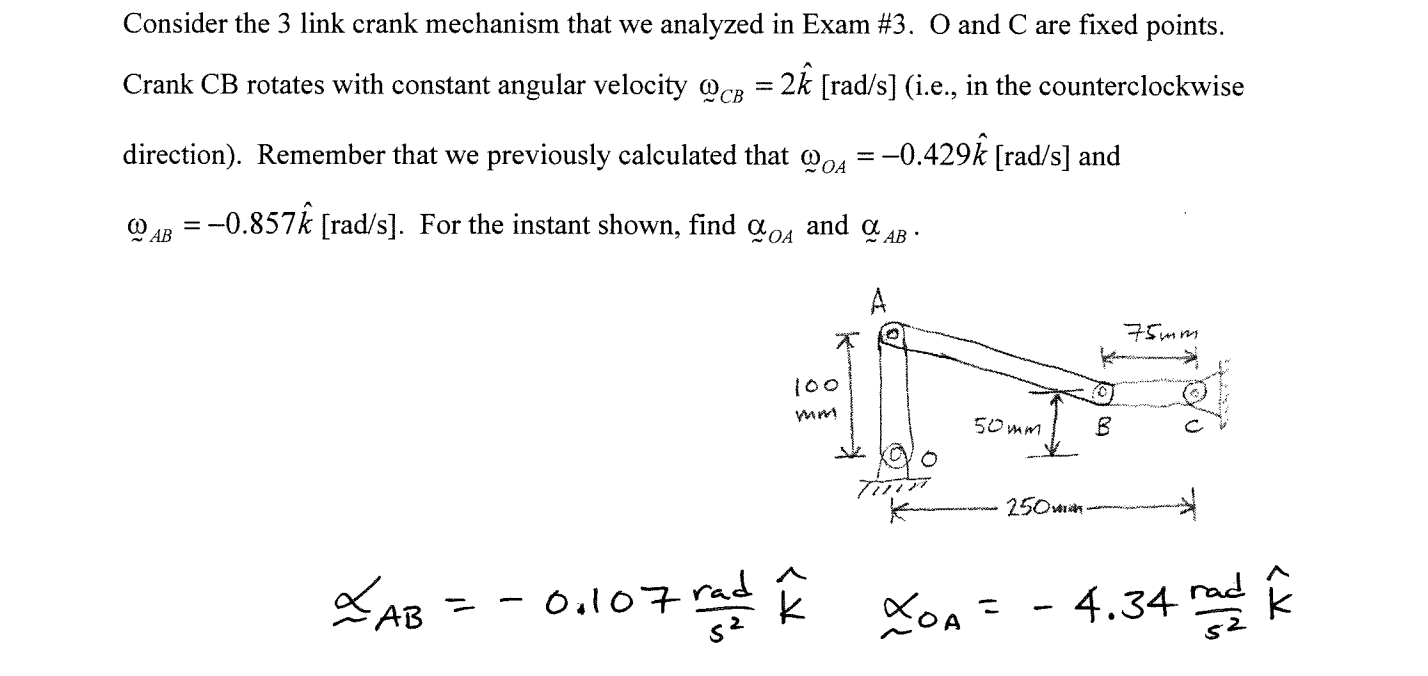

Consider the 3 link crank mechanism that we analyzed in Exam #3. O and C are fixed points. Crank CB rotates with constant angular velocity @cB = 2k [rad/s] (i.e., in the counterclockwise direction). Remember that we previously calculated that A = -0.429k [rad/s] and and AB - @AB = -0.857k [rad/s]. For the instant shown, find 75mm LAB = 100 mm 50mm B 250m Tuin 0107 ngày k Xoa rad = 4.34 rade na k 52
