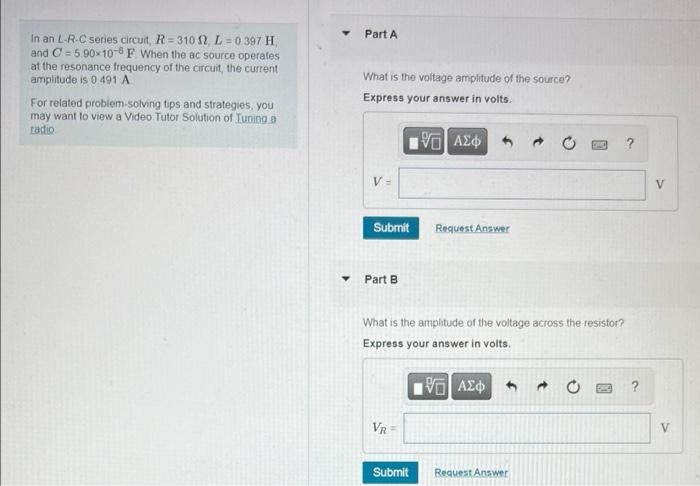

In an L-R-C series circuit, R=310 , L=0 397 H, and C= 5.90x10-8 F When the ac source operates at the resonance frequency of the circuit, the current amplitude is 0.491 A For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Tuning a radio Part A What is the voltage amplitude of the source? Express your answer in volts. [5] ΑΣΦ V= Submit ? Request Answer Part B What is the amplitude of the voltage across the resistor? Express your answer in volts. 15. ΑΣΦ 0 ? VR Submit Request Answer V

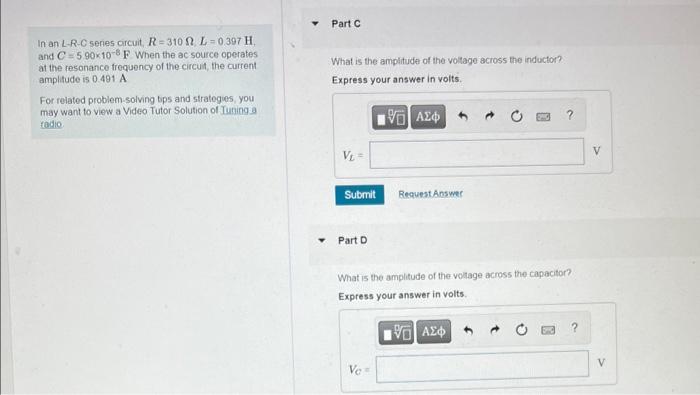

In an L-R-C series circuit, R=310 L=0.397 H, and C=5.90x10-8 F When the ac source operates at the resonance frequency of the circuit, the current amplitude is 0.491 A For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Tuning a radio Part C What is the amplitude of the voltage across the inductor? Express your answer in volts. 195] ΑΣΦΑ V₁= Submit Request Answer Part D What is the amplitude of the voltage across the capacitor? Express your answer in volts. 195| ΑΣΦ Ve V V

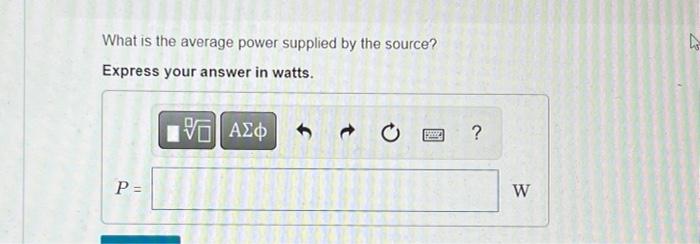

What is the average power supplied by the source? Express your answer in watts. VE ΑΣΦ → 0 P = SE ? W
