4.4 The current-voltage curves of a Schottky diode are shown in Fig. P4.4 for various temperatures. Determine n, B, A*,

Post by answerhappygod »

4 4 The Current Voltage Curves Of A Schottky Diode Are Shown In Fig P4 4 For Various Temperatures Determine N B A 1
4 4 The Current Voltage Curves Of A Schottky Diode Are Shown In Fig P4 4 For Various Temperatures Determine N B A 1 (46.24 KiB) Viewed 35 times

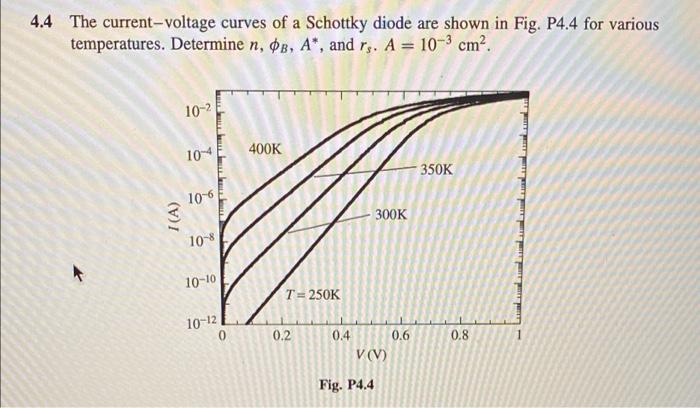

4.4 The current-voltage curves of a Schottky diode are shown in Fig. P4.4 for various temperatures. Determine n, B, A*, and r,. A = 10-³ cm². 10-2 400K 350K t I(A) 104 10-6 Sh 10-8 10-10 10-12 0 T= 250K 0.2 0.4 Fig. P4.4 300K 0.6 V (V) 0.8 pp ppr pr per part pour part
