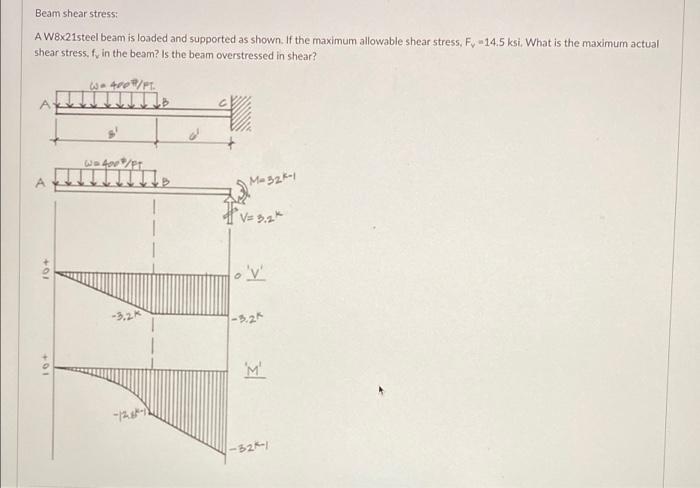

Beam shear stress: AW8x21steel beam is loaded and supported as shown. If the maximum allowable shear stress, F, -14.5 ksi. What is the maximum actual shear stress, f, in the beam? Is the beam overstressed in shear? W-40 d W= 400* M-32K-1 10+ 10+ -128-1) V=3.2k -3.25 'M' 32K-1

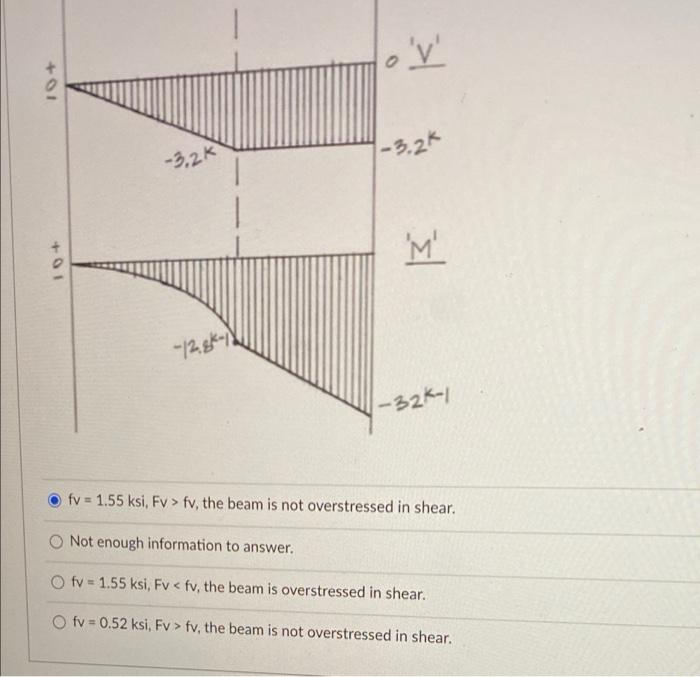

+01 -3,2K +01 o'v' -3.2K 'M' -12.8k-1) -32K-1 fv = 1.55 ksi, Fv> fv, the beam is not overstressed in shear. Not enough information to answer. O fv = 1.55 ksi, Fv < fv, the beam is overstressed in shear. Ofv=0.52 ksi, Fv> fv, the beam is not overstressed in shear.
