A 10 m beam is simply supported at the right end and is fixed at the left end. It is subjected to a concentrated load of

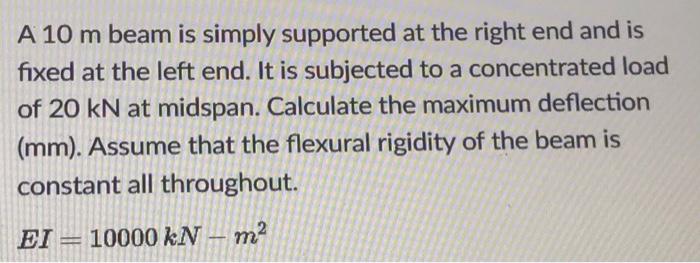

A 10 m beam is simply supported at the right end and is fixed at the left end. It is subjected to a concentrated load of 20 kN at midspan. Calculate the maximum deflection (mm). Assume that the flexural rigidity of the beam is constant all throughout. EI 10000 kN-n - m²
