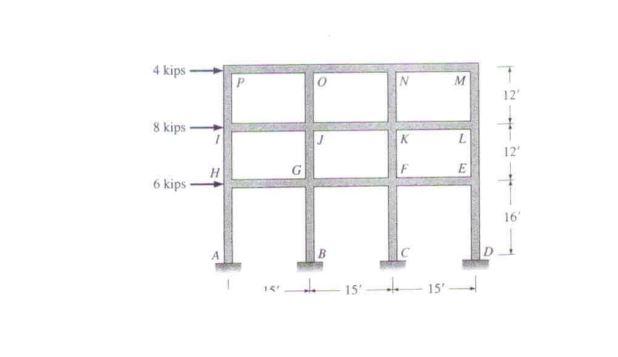

Solve the frame shown using Cantilever method:
a) Assume columns and beams have A = 50 in^2, and I = 2100 in^4,
Draw Shear & Bending moment diagrams, and show overall frame
deflection
Solve The Frame Shown Using Cantilever Method A Assume Columns And Beams Have A 50 In 2 And I 2100 In 4 Draw She 1 (12.61 KiB) Viewed 33 times
4 kips 8 kips 6 kips 7 MALEFORGE 16' S 15' 1 X 15' 16
