A horizontal curve on a two-lane highway (12 ft lanes) is designed for 55 mi/h with 10% superelevation. The PI of the cu

Post by answerhappygod »

A Horizontal Curve On A Two Lane Highway 12 Ft Lanes Is Designed For 55 Mi H With 10 Superelevation The Pi Of The Cu 1
A Horizontal Curve On A Two Lane Highway 12 Ft Lanes Is Designed For 55 Mi H With 10 Superelevation The Pi Of The Cu 1 (14.98 KiB) Viewed 28 times
please include drawings as well.
TIA

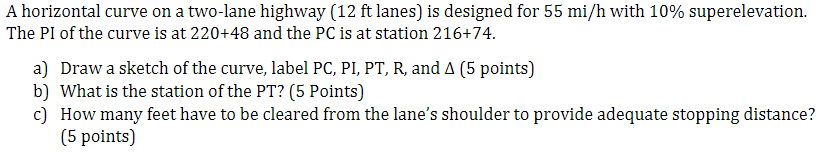

A horizontal curve on a two-lane highway (12 ft lanes) is designed for 55 mi/h with 10% superelevation. The PI of the curve is at 220+48 and the PC is at station 216+74. a) Draw a sketch of the curve, label PC, PI, PT, R, and A (5 points) b) What is the station of the PT? (5 Points) c) How many feet have to be cleared from the lane's shoulder to provide adequate stopping distance? (5 points)
