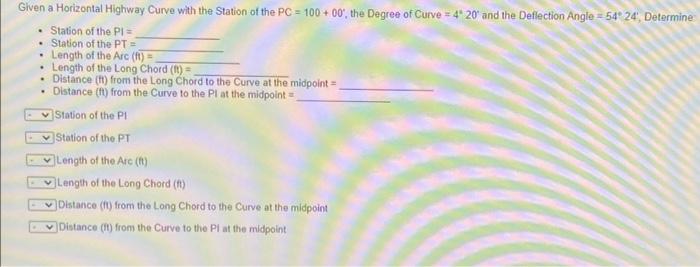

Given a Horizontal Highway Curve with the Station of the PC= 100+00', the Degree of Curve = 4° 20' and the Deflection Angle 54 24, Determine Station of the Pl= Station of the PT = Length of the Arc (ft) = Length of the Long Chord (t) = • Distance (ft) from the Long Chord to the Curve at the midpoint = Distance (ft) from the Curve to the Pl at the midpoint = Station of the Pl Station of the PT Length of the Arc (ft) Length of the Long Chord (ft) Distance (ft) from the Long Chord to the Curve at the midpoint Distance (ft) from the Curve to the PI at the midpoint
