-LL- P h A The cabinet with a mass of 65 kg has its center of gravity at y = 1 m above the floor. It is pushed as shown

[answerhappygod]

Ll P H A The Cabinet With A Mass Of 65 Kg Has Its Center Of Gravity At Y 1 M Above The Floor It Is Pushed As Shown 1 (55.82 KiB) Viewed 30 times

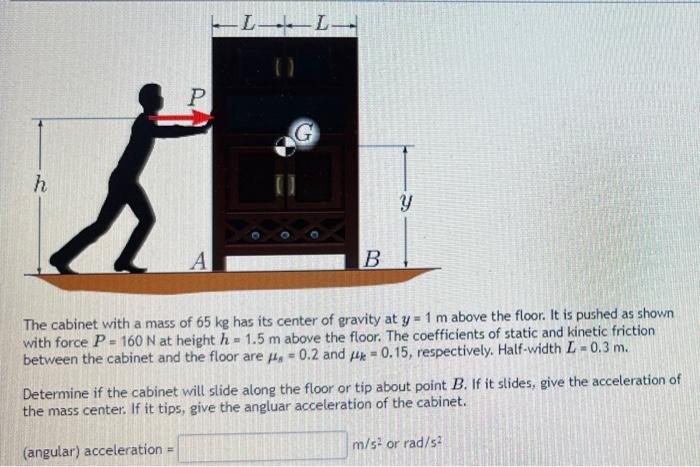

-LL- P h A The cabinet with a mass of 65 kg has its center of gravity at y = 1 m above the floor. It is pushed as shown with force P=160 N at height h= 1.5 m above the floor. The coefficients of static and kinetic friction between the cabinet and the floor are μ = 0.2 and 4 = 0.15, respectively. Half-width L = 0.3 m. Determine if the cabinet will slide along the floor or tip about point B. If it slides, give the acceleration of the mass center. If it tips, give the angluar acceleration of the cabinet. (angular) acceleration = m/s² or rad/s² B Y
