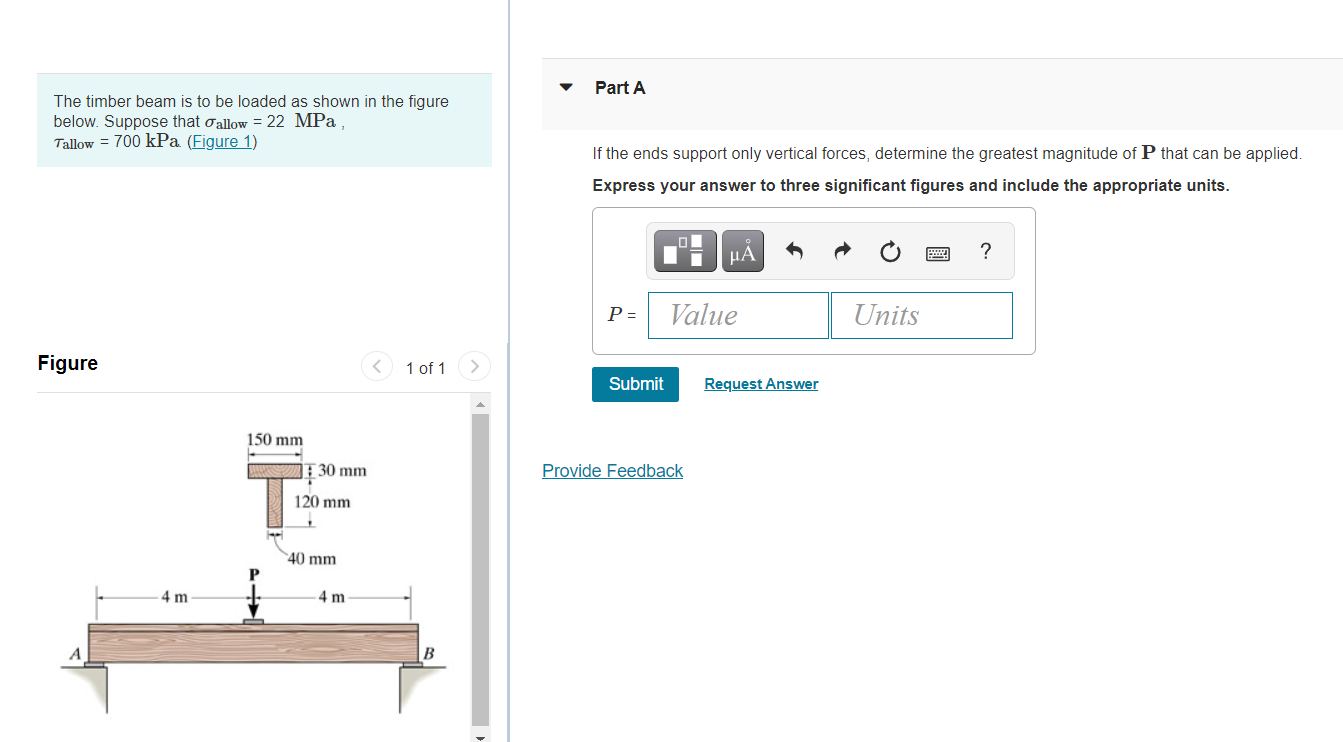

The timber beam is to be loaded as shown in the figure below. Suppose that allow = 22 MPa, Tallow = 700 kPa. (Figure 1)

[answerhappygod]

The Timber Beam Is To Be Loaded As Shown In The Figure Below Suppose That Allow 22 Mpa Tallow 700 Kpa Figure 1 1 (98.2 KiB) Viewed 42 times

The timber beam is to be loaded as shown in the figure below. Suppose that allow = 22 MPa, Tallow = 700 kPa. (Figure 1) Figure 1 of 1 150 mm 4 m 30 mm 120 mm + 40 mm 4 m Part A If the ends support only vertical forces, determine the greatest magnitude of P that can be applied. Express your answer to three significant figures and include the appropriate units. μÁ ? P = Value Units Submit Provide Feedback Request Answer
