A load of P = 150 kN is supported by a structure consisting of rigid bar ABC, two identical solid bronze [E = 100 GPa] r

Post by answerhappygod »

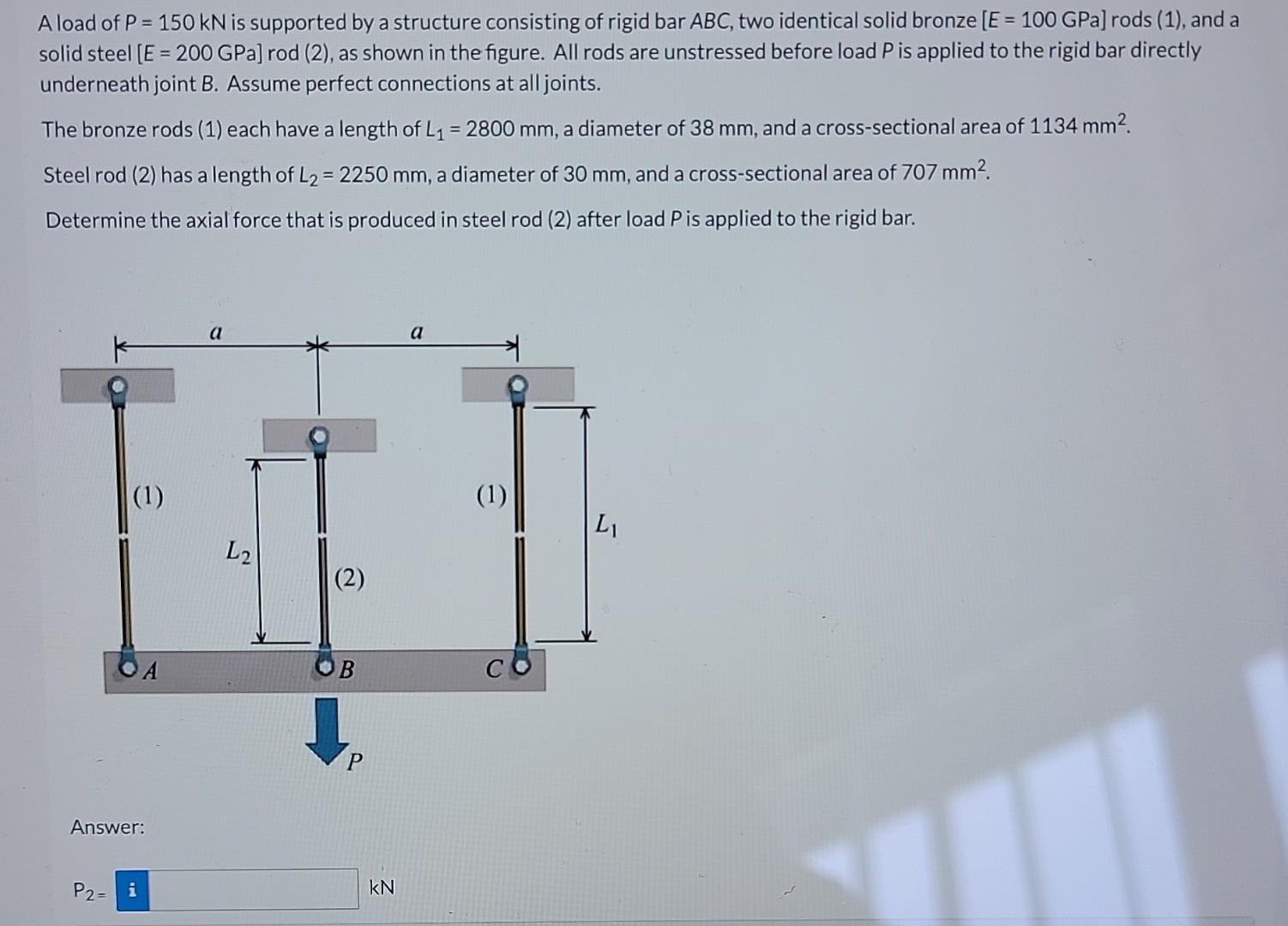

A Load Of P 150 Kn Is Supported By A Structure Consisting Of Rigid Bar Abc Two Identical Solid Bronze E 100 Gpa R 1
A Load Of P 150 Kn Is Supported By A Structure Consisting Of Rigid Bar Abc Two Identical Solid Bronze E 100 Gpa R 1 (115.05 KiB) Viewed 20 times
A load of P = 150 kN is supported by a structure consisting of rigid bar ABC, two identical solid bronze [E = 100 GPa] rods (1), and a solid steel [E = 200 GPa] rod (2), as shown in the figure. All rods are unstressed before load P is applied to the rigid bar directly underneath joint B. Assume perfect connections at all joints. The bronze rods (1) each have a length of L₁ = 2800 mm, a diameter of 38 mm, and a cross-sectional area of 1134 mm². Steel rod (2) has a length of L₂ = 2250 mm, a diameter of 30 mm, and a cross-sectional area of 707 mm². Determine the axial force that is produced in steel rod (2) after load P is applied to the rigid bar. a a L₁ (1) A Answer: P2= i L2 (2) OB kN (1)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
