- 7 0 Assume The Beam Of Figure 7 Is Cut At Point B Into Two Segments Db And Abc Sketch Free Body Diagrams F B D Of Th 1 (16.69 KiB) Viewed 18 times
7.0 Assume the beam of Figure 7 is cut at point B into two segments DB and ABC, sketch free body diagrams (F.B.D.) of th
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
7.0 Assume the beam of Figure 7 is cut at point B into two segments DB and ABC, sketch free body diagrams (F.B.D.) of th

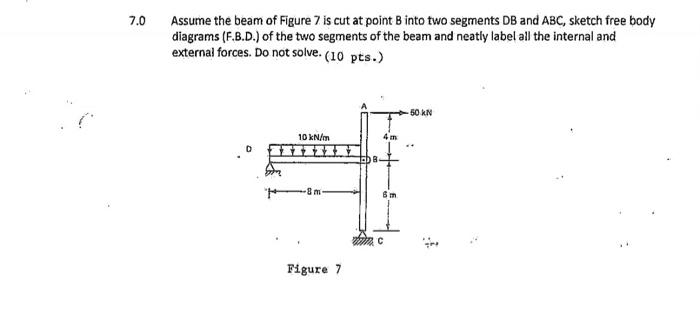

7.0 Assume the beam of Figure 7 is cut at point B into two segments DB and ABC, sketch free body diagrams (F.B.D.) of the two segments of the beam and neatly label all the internal and external forces. Do not solve. (10 pts.) -50 kN 10 kN/m .. Figure 7 DB. 4m 6 m
