Question 2 [25 Marks] A steel column welded with three plates is shown in Fig. 2. The boundary conditions in both strong

[answerhappygod]

Question 2 25 Marks A Steel Column Welded With Three Plates Is Shown In Fig 2 The Boundary Conditions In Both Strong 1 (80.26 KiB) Viewed 22 times

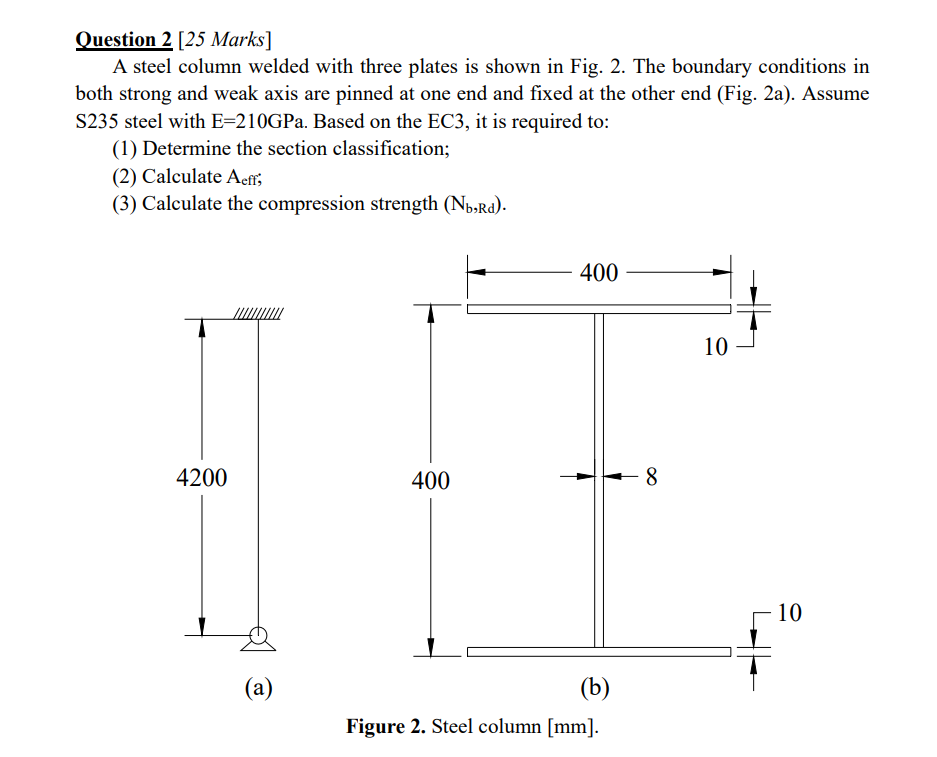

Question 2 [25 Marks] A steel column welded with three plates is shown in Fig. 2. The boundary conditions in both strong and weak axis are pinned at one end and fixed at the other end (Fig. 2a). Assume S235 steel with E=210GPa. Based on the EC3, it is required to: (1) Determine the section classification; (2) Calculate Aeff; (3) Calculate the compression strength (Nb,Rd). 400 10 4200 400 (b) Figure 2. Steel column [mm]. (a) - 8 10
