A folding tray mechanism is attached to a wall as shown. Find the internal forces and bending moment in the lower suppor

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

A folding tray mechanism is attached to a wall as shown. Find the internal forces and bending moment in the lower suppor

Post by answerhappygod »

A Folding Tray Mechanism Is Attached To A Wall As Shown Find The Internal Forces And Bending Moment In The Lower Suppor 1
A Folding Tray Mechanism Is Attached To A Wall As Shown Find The Internal Forces And Bending Moment In The Lower Suppor 1 (77.13 KiB) Viewed 45 times

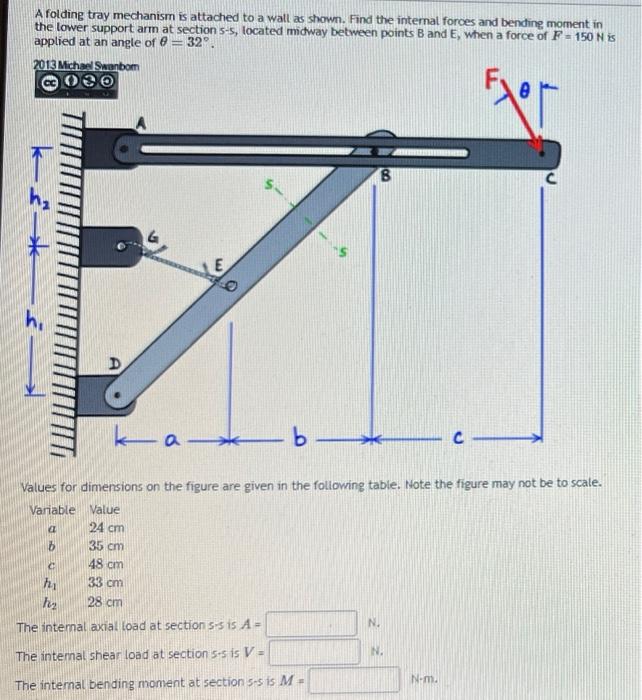

A folding tray mechanism is attached to a wall as shown. Find the internal forces and bending moment in the lower support arm at section s-s, located midway between points B and E, when a force of F-150 N is applied at an angle of @= 32°. 2013 Michael Swanbom B C E ка kb. C Values for dimensions on the figure are given in the following table. Note the figure may not be to scale. Variable Value 24 cm 35 cm 48 cm 33 cm h₂ 28 cm N. The internal axial load at section s-s is A = The internal shear load at section s-sis V= The internal bending moment at section s-s is M = k▬š★—š 4542 a N. N-m.
