Two blocks are supported by a pulley along an incline as shown. The lower block B has a weight of 37 lbs and the higher

Post by answerhappygod »

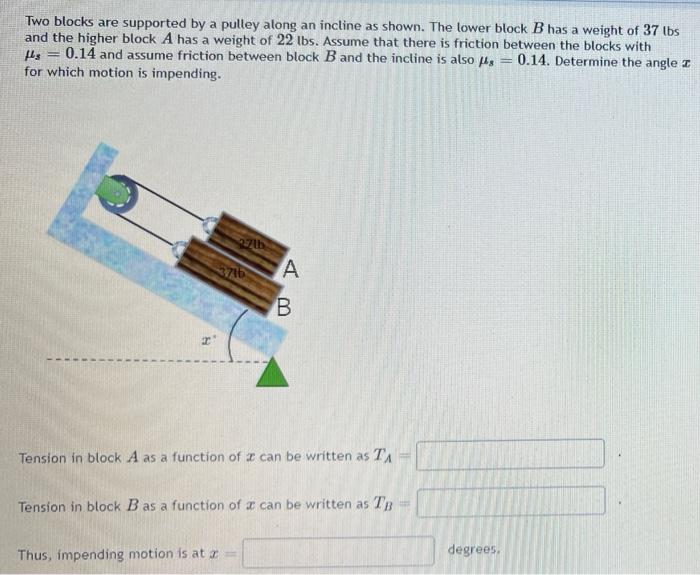

Two Blocks Are Supported By A Pulley Along An Incline As Shown The Lower Block B Has A Weight Of 37 Lbs And The Higher 1
Two Blocks Are Supported By A Pulley Along An Incline As Shown The Lower Block B Has A Weight Of 37 Lbs And The Higher 1 (59.82 KiB) Viewed 40 times
Two blocks are supported by a pulley along an incline as shown. The lower block B has a weight of 37 lbs and the higher block A has a weight of 22 lbs. Assume that there is friction between the blocks with fls = 0.14 and assume friction between block B and the incline is also s 0.14. Determine the angle z for which motion is impending. - 27lb I Tension in block A as a function of a can be written as TA Tension in block B as a function of a can be written as TB Thus, impending motion is at = 3716 AB degrees.
