8. Given the traffic information below, and an SN =4.0 Find the equivalent 18-kip factors. Also find the total 18-kip ES

[answerhappygod]

8 Given The Traffic Information Below And An Sn 4 0 Find The Equivalent 18 Kip Factors Also Find The Total 18 Kip Es 1 (32.6 KiB) Viewed 38 times

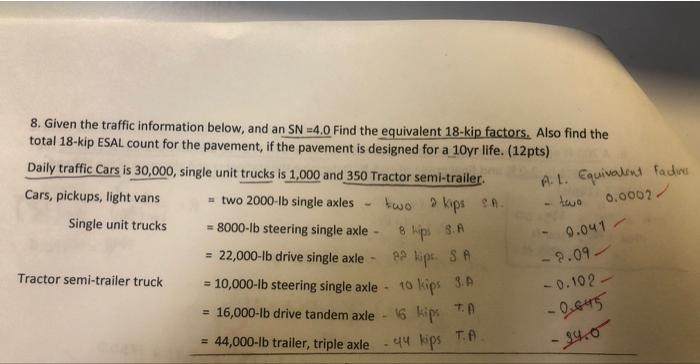

8. Given the traffic information below, and an SN =4.0 Find the equivalent 18-kip factors. Also find the total 18-kip ESAL count for the pavement, if the pavement is designed for a 10yr life. (12pts) Daily traffic Cars is 30,000, single unit trucks is 1,000 and 350 Tractor semi-trailer. Cars, pickups, light vans Single unit trucks two 2 kips S.A. 8 Hips S.A 2 kips. SA Tractor semi-trailer truck = two 2000-lb single axles = 8000-lb steering single axle - = 22,000-lb drive single axle = 10,000-lb steering single axle = 16,000-lb drive tandem axle = 44,000-lb trailer, triple axle - 10 kips 3.A 16 kips T.A qu kips T.A. A. L. Equivalent fading two 0.0002 0.041- -9.09- -0.102- -0.645
