Problem 5 can carry based on its negative moment capacity. Use ASD. Determine the maximum superimposed floor load that t

Post by answerhappygod »

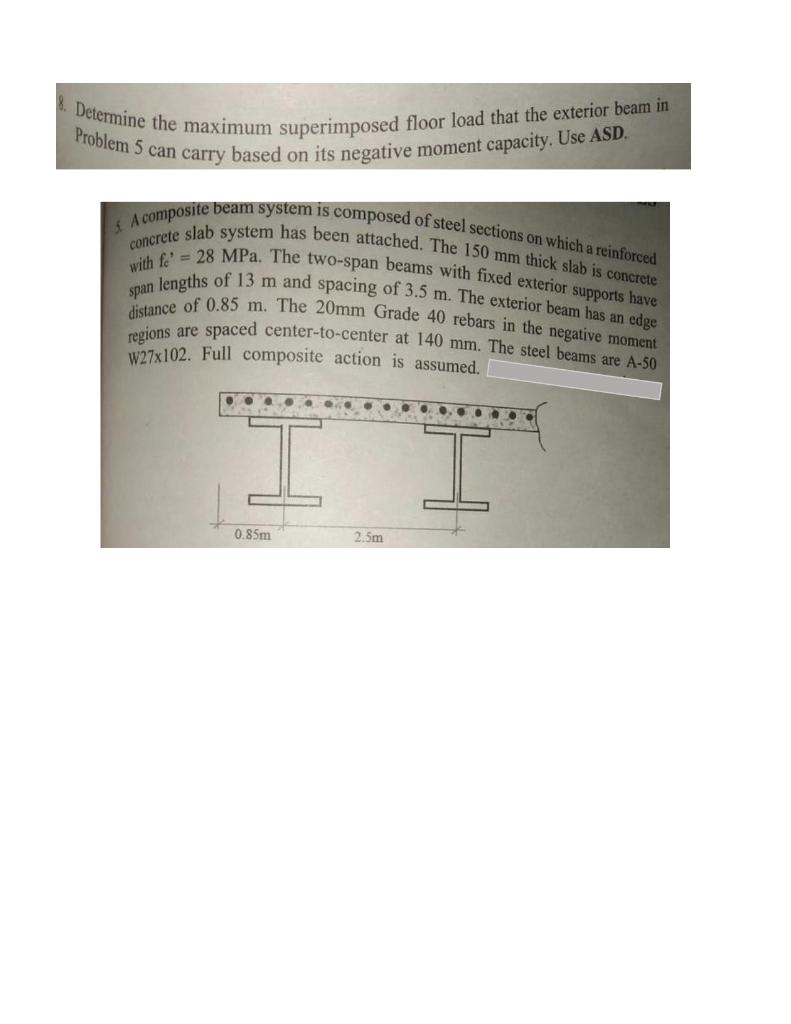

Problem 5 Can Carry Based On Its Negative Moment Capacity Use Asd Determine The Maximum Superimposed Floor Load That T 1
Problem 5 Can Carry Based On Its Negative Moment Capacity Use Asd Determine The Maximum Superimposed Floor Load That T 1 (49.34 KiB) Viewed 74 times
Problem 5 can carry based on its negative moment capacity. Use ASD. Determine the maximum superimposed floor load that the exterior beam in 5 A composite beam system is composed of steel sections on which a reinforced concrete slab system has been attached. The 150 mm thick slab is concrete span lengths of 13 m and spacing of 3.5 m. The exterior beam has an edge with fe' = 28 MPa. The two-span beams with fixed exterior supports have distance of 0.85 m. The 20mm Grade 40 rebars in the negative moment regions are spaced center-to-center at 140 mm. The steel beams are A-50 W27x102. Full composite action is assumed. I 0.85m 2.5m
