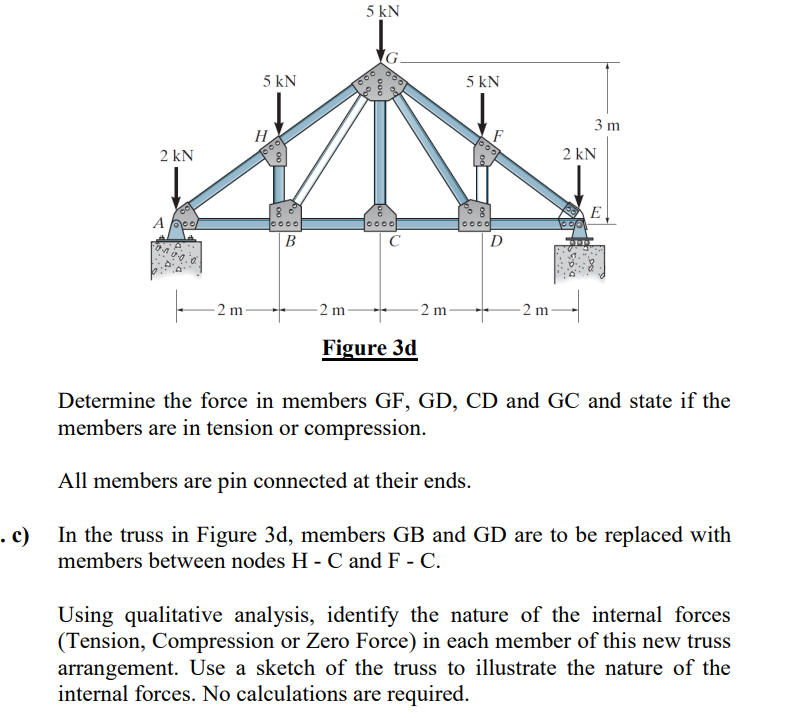

2 kN CO A pool 5 kN 2 m H B 5 kN 100% G. C 5 kN -2 m- F ooo oooo D 3 m 2 kN 56,9 E |—2 -2 m- 2 m- Figure 3d Determine the force in members GF, GD, CD and GC and state if the members are in tension or compression. All members are pin connected at their ends. . c) In the truss in Figure 3d, members GB and GD are to be replaced with members between nodes H - C and F - C. Using qualitative analysis, identify the nature of the internal forces (Tension, Compression or Zero Force) in each member of this new truss arrangement. Use a sketch of the truss to illustrate the nature of the internal forces. No calculations are required. "150":"
