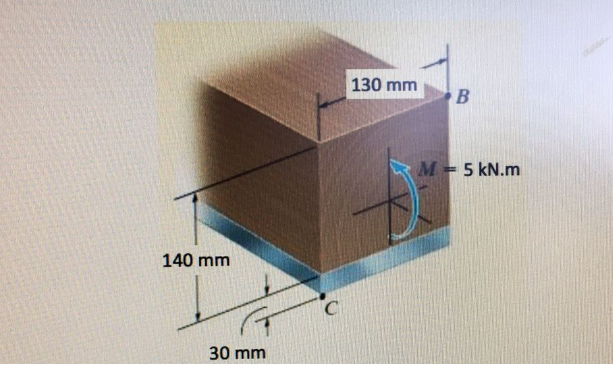

a composite beam is made of wood and reinforced with a steel
strip located on the inside. It has the cross-sectional area shown
in Figure 6.40a. If subjected to a bending moment M = 5 kN · m,
determine the normal stress at points B and C. Assume E steel = 200
GP a. Emad = 12 GPa.
A Composite Beam Is Made Of Wood And Reinforced With A Steel Strip Located On The Inside It Has The Cross Sectional Are 1 (471.77 KiB) Viewed 33 times
140 mm 30 mm C 130 mm B M = 5 kN.m
