The continuous beam shown in the diagram has lengths L₁-8 m and L₂=4 m. The beam is subjected to a uniformly distributed

[answerhappygod]

The Continuous Beam Shown In The Diagram Has Lengths L 8 M And L 4 M The Beam Is Subjected To A Uniformly Distributed 1 (53.55 KiB) Viewed 36 times

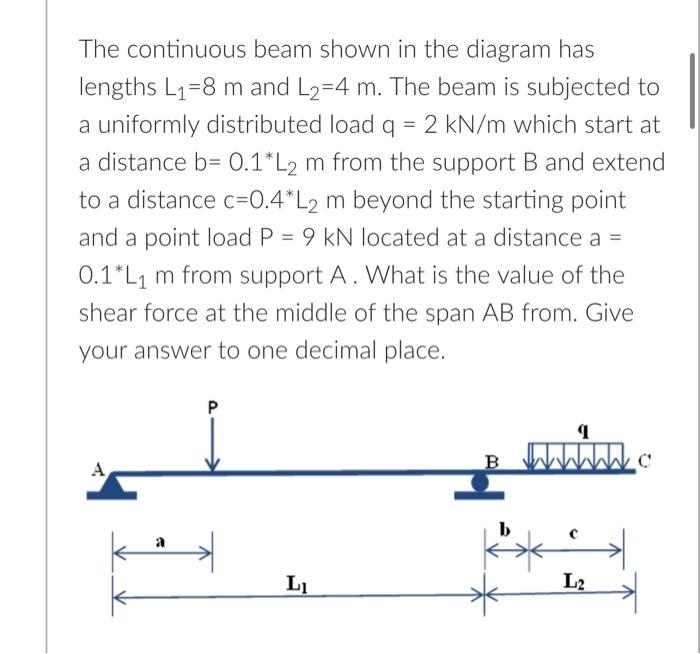

The continuous beam shown in the diagram has lengths L₁-8 m and L₂=4 m. The beam is subjected to a uniformly distributed load q = 2 kN/m which start at a distance b= 0.1*L2 m from the support B and extend to a distance c=0.4* L2 m beyond the starting point and a point load P = 9 kN located at a distance a = 0.1*L₁ m from support A. What is the value of the shear force at the middle of the span AB from. Give your answer to one decimal place. P ¶ B A L₁ a L2
