* Incorrect The 22-kg wheel has an eccentric mass which places the center of mass G a distance F = 140 mm away from the

[answerhappygod]

Incorrect The 22 Kg Wheel Has An Eccentric Mass Which Places The Center Of Mass G A Distance F 140 Mm Away From The 1 (267.44 KiB) Viewed 42 times

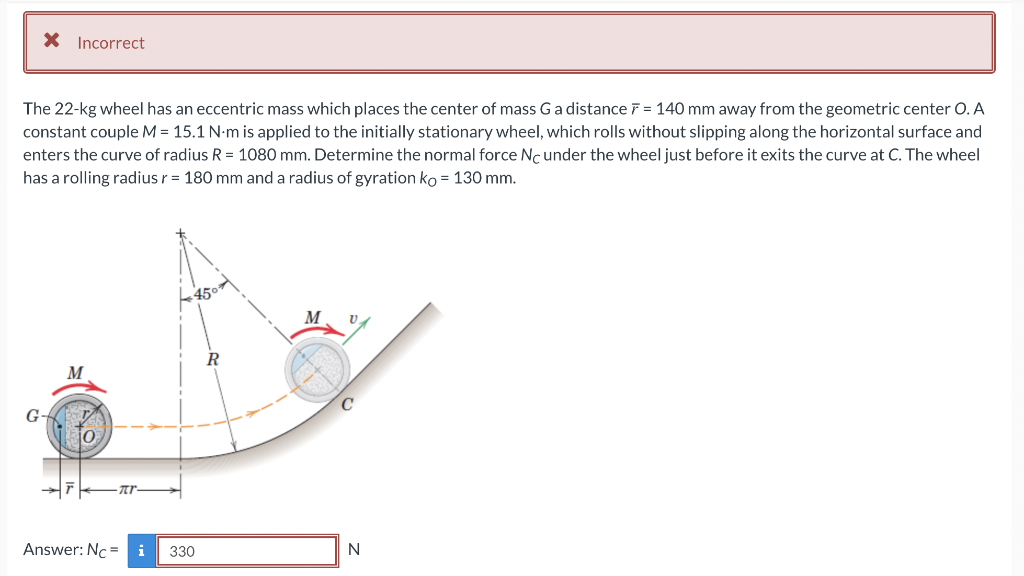

* Incorrect The 22-kg wheel has an eccentric mass which places the center of mass G a distance F = 140 mm away from the geometric center O. A constant couple M = 15.1 N-m is applied to the initially stationary wheel, which rolls without slipping along the horizontal surface and enters the curve of radius R = 1080 mm. Determine the normal force Nc under the wheel just before it exits the curve at C. The wheel has a rolling radius r = 180 mm and a radius of gyration ko = 130 mm. 45 M V M N G- Answer: Nci 330 R
