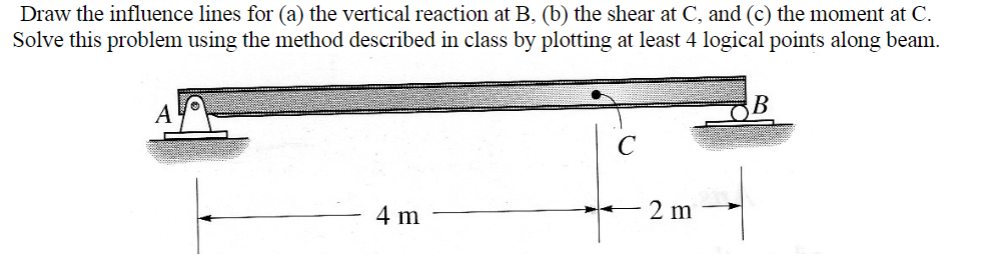

Draw the influence lines for (a) the vertical reaction at B, (b) the shear at C, and (c) the moment at C. Solve this problem using the method described in class by plotting at least 4 logical points along beam. 2 m 4 m
