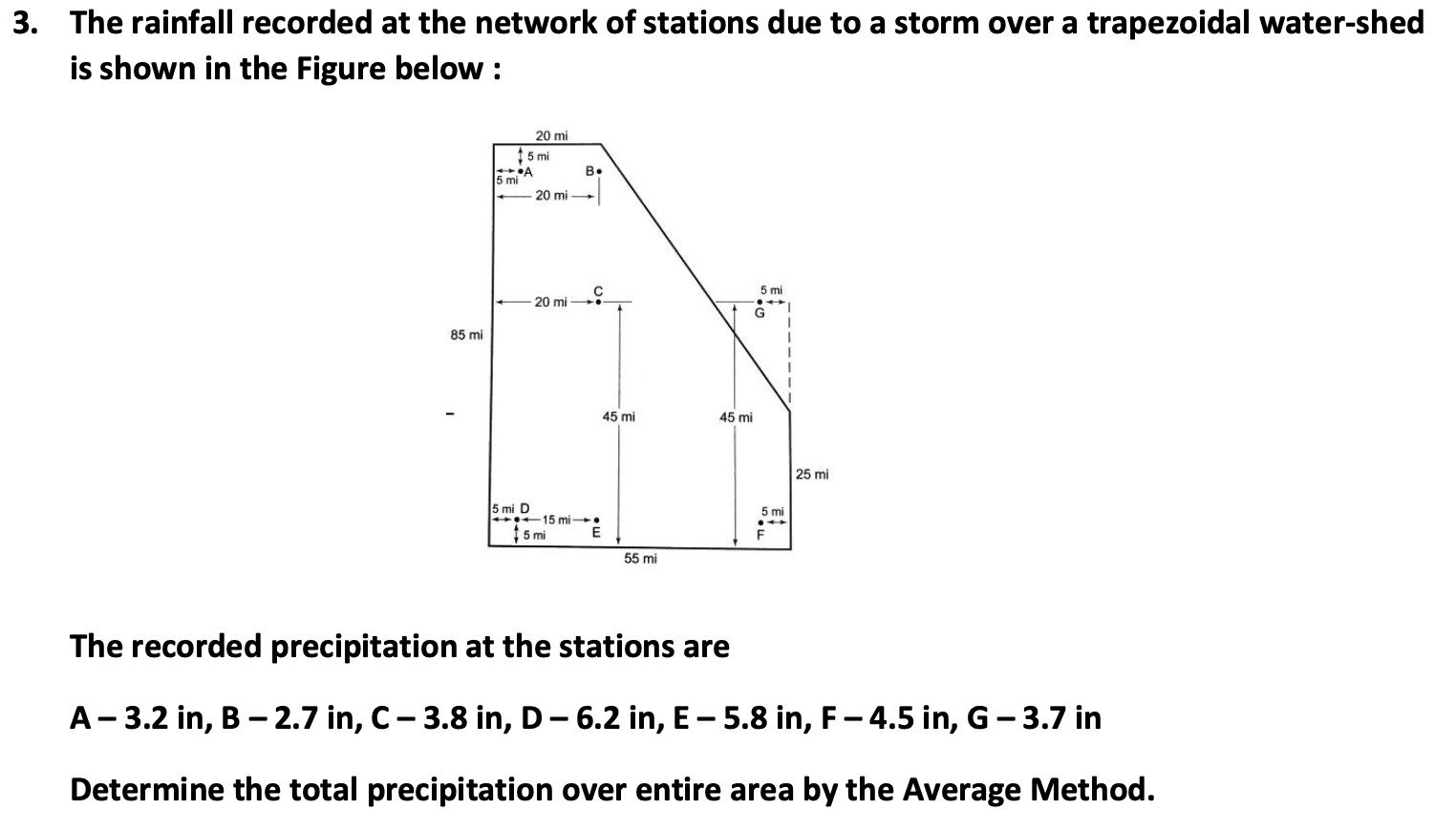

3. The rainfall recorded at the network of stations due to a storm over a trapezoidal water-shed is shown in the Figure

[answerhappygod]

3 The Rainfall Recorded At The Network Of Stations Due To A Storm Over A Trapezoidal Water Shed Is Shown In The Figure 1 (107.95 KiB) Viewed 32 times

3. The rainfall recorded at the network of stations due to a storm over a trapezoidal water-shed is shown in the Figure below: 20 mi 15 mi A 5 mi 5 mi D 15 mi F 55 mi The recorded precipitation at the stations are A-3.2 in, B-2.7 in, C-3.8 in, D - 6.2 in, E- 5.8 in, F-4.5 in, G-3.7 in Determine the total precipitation over entire area by the Average Method. 85 mi 5 mi 20 mi- 20 mi B. 45 mi 15 mi-. E G 45 mi I 5 mi 25 mi
