The 22-kg wheel has an eccentric mass which places the center of mass G a distance 7 = 140 mm away from the geometric ce

[answerhappygod]

The 22 Kg Wheel Has An Eccentric Mass Which Places The Center Of Mass G A Distance 7 140 Mm Away From The Geometric Ce 1 (476.34 KiB) Viewed 34 times

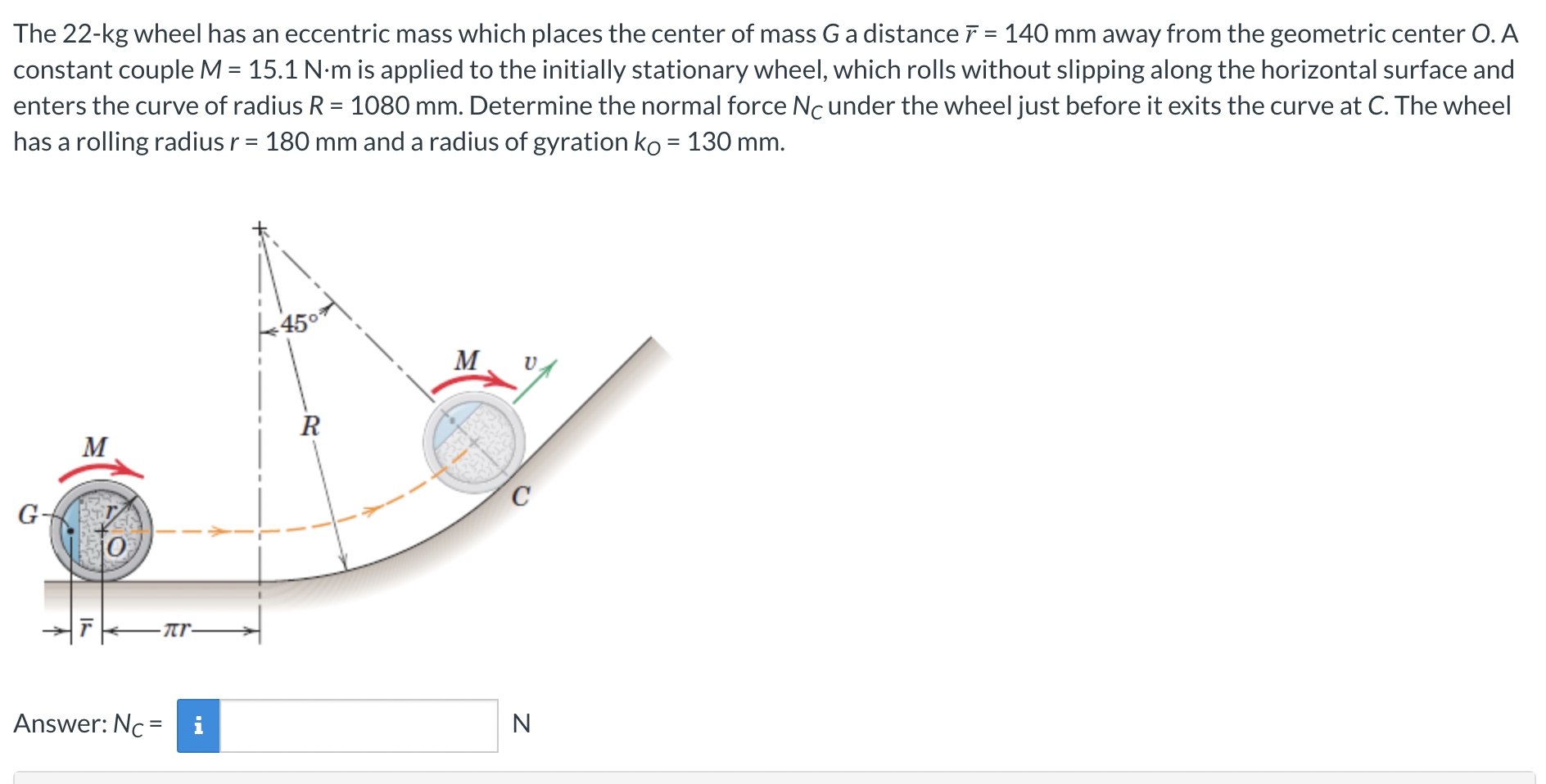

The 22-kg wheel has an eccentric mass which places the center of mass G a distance 7 = 140 mm away from the geometric center O. A constant couple M = 15.1 N·m is applied to the initially stationary wheel, which rolls without slipping along the horizontal surface and enters the curve of radius R = 1080 mm. Determine the normal force Nc under the wheel just before it exits the curve at C. The wheel has a rolling radius r = 180 mm and a radius of gyration ko = 130 mm. M U R M C G Answer: Nc= -πr- i N
