5.44 and 5.45 Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum abso-

[answerhappygod]

5 44 And 5 45 Draw The Shear And Bending Moment Diagrams For The Beam And Loading Shown And Determine The Maximum Abso 1 (79.48 KiB) Viewed 50 times

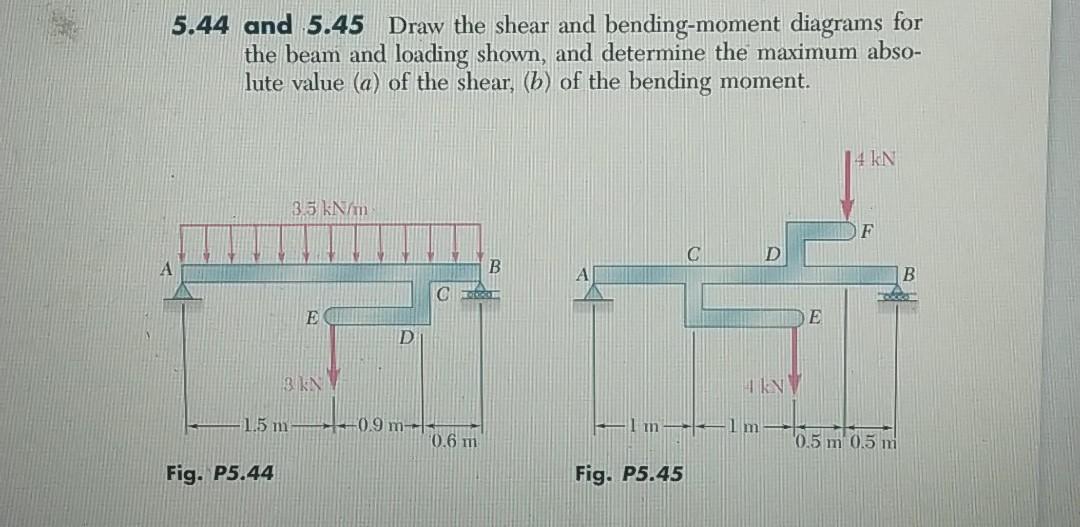

5.44 and 5.45 Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum abso- lute value (a) of the shear, (b) of the bending moment. 4 kN 3.5 kN/m F C D B E 3 KN 1.5 m- Fig. P5.44 D -0.9 m- C 0.6 m 1 m Fig. P5.45 IKNY Im E 0.5 m 0.5 m B
