Find a beam cross section that is not symmetric with respect to the horizontal axis nor the vertical axis. Using 3 board

Post by answerhappygod »

Find A Beam Cross Section That Is Not Symmetric With Respect To The Horizontal Axis Nor The Vertical Axis Using 3 Board 1
Find A Beam Cross Section That Is Not Symmetric With Respect To The Horizontal Axis Nor The Vertical Axis Using 3 Board 1 (83.66 KiB) Viewed 21 times

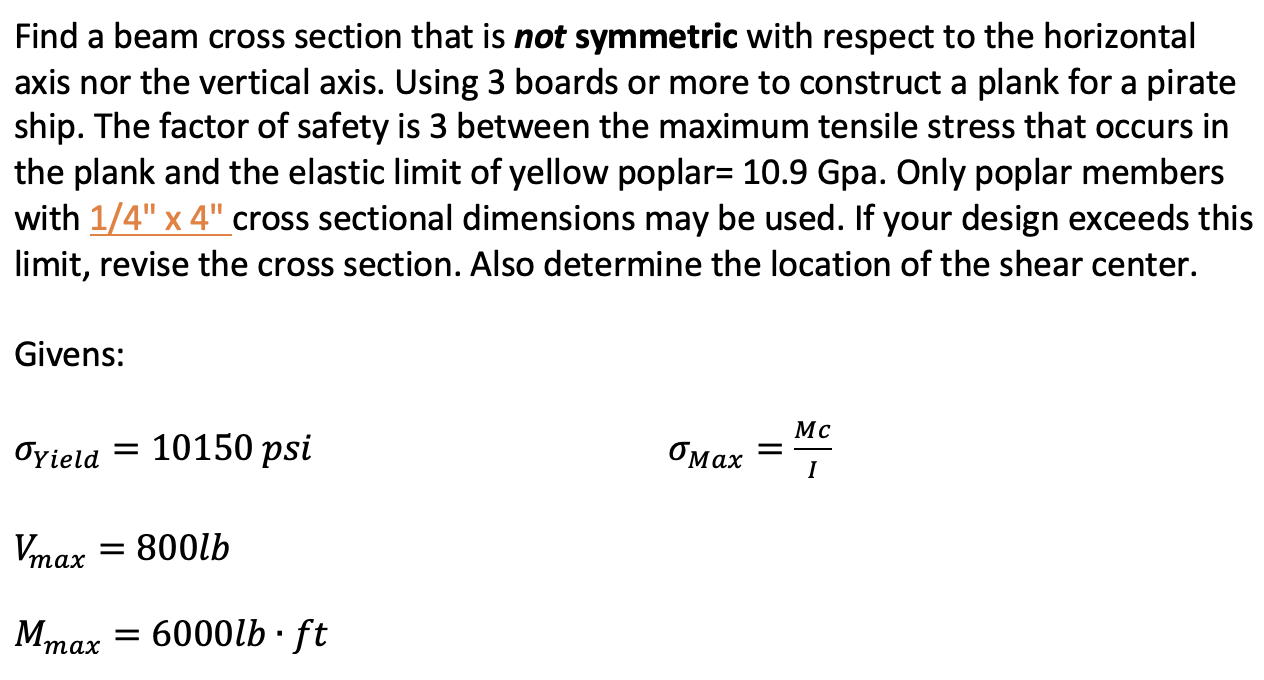

Find a beam cross section that is not symmetric with respect to the horizontal axis nor the vertical axis. Using 3 boards or more to construct a plank for a pirate ship. The factor of safety is 3 between the maximum tensile stress that occurs in the plank and the elastic limit of yellow poplar= 10.9 Gpa. Only poplar members with 1/4" x 4" cross sectional dimensions may be used. If your design exceeds this limit, revise the cross section. Also determine the location of the shear center. Givens: Tyield = 10150 psi σMax Mc I Vmax = 800lb Mmax = 6000lb·ft
