2) For the following Frame 10' a. Sketch the deformed shape b. Find the Horizontal Reaction at D using just bending ener

Post by answerhappygod »

2 For The Following Frame 10 A Sketch The Deformed Shape B Find The Horizontal Reaction At D Using Just Bending Ener 1
2 For The Following Frame 10 A Sketch The Deformed Shape B Find The Horizontal Reaction At D Using Just Bending Ener 1 (23.11 KiB) Viewed 24 times

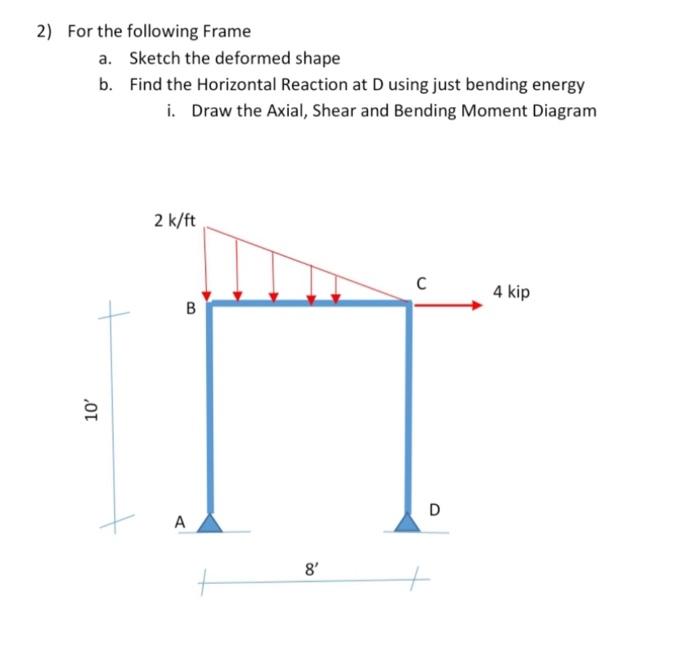

2) For the following Frame 10' a. Sketch the deformed shape b. Find the Horizontal Reaction at D using just bending energy i. Draw the Axial, Shear and Bending Moment Diagram 2 k/ft C 4 kip B A 8' D
