No. 1. (15 Pts) For the beam loaded as shown, a.) Determine the support reactions. b.) Write the shear and moment equati
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
No. 1. (15 Pts) For the beam loaded as shown, a.) Determine the support reactions. b.) Write the shear and moment equati

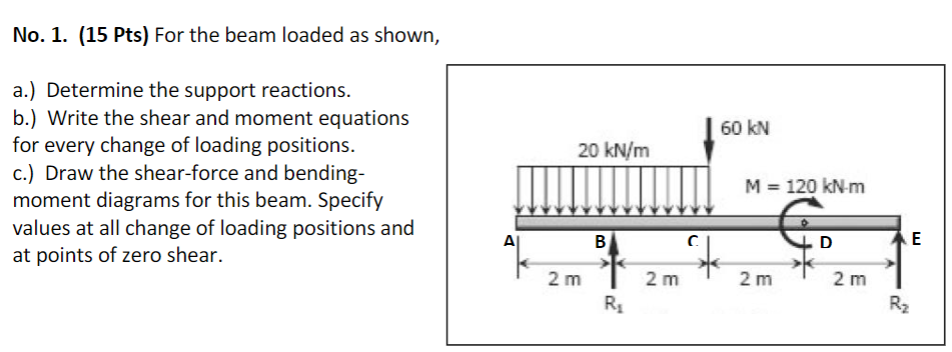

No. 1. (15 Pts) For the beam loaded as shown, a.) Determine the support reactions. b.) Write the shear and moment equations for every change of loading positions. c.) Draw the shear-force and bending- moment diagrams for this beam. Specify values at all change of loading positions and at points of zero shear. A 20 kN/m B 2 m R₁ 2m C 60 kN M = 120 kN-m D 2 m 2 m E R₂
