Use CPT data to plot the relative density of the site ground according to the depth. *SPT and CPT tests were conducted o

[answerhappygod]

Use CPT data to plot the relative density of the site ground
according to the depth.
*SPT and CPT tests were conducted on the ground mainly composed
of sand, and the raw data are organized in the attached EXCEL file.
Groundwater level is located at 2.1 m

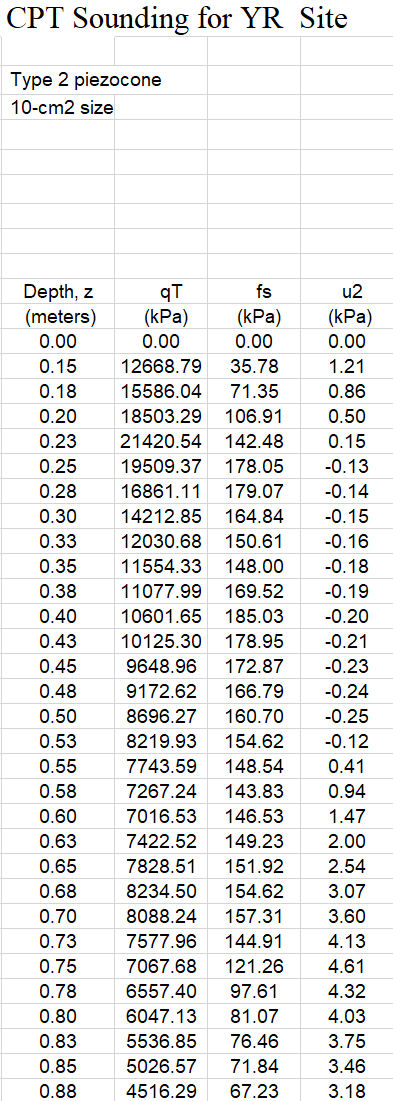

Use Cpt Data To Plot The Relative Density Of The Site Ground According To The Depth Spt And Cpt Tests Were Conducted O 1 (42.23 KiB) Viewed 32 times

CPT Sounding for YR Site Type 2 piezocone 10-cm2 size qT Depth, z (meters) 0.00 fs (kPa) u2 (kPa) (kPa) 0.00 0.00 0.00 0.15 12668.79 35.78 1.21 0.18 15586.04 71.35 0.86 0.20 18503.29 106.91 0.50 0.23 21420.54 142.48 0.15 0.25 19509.37 178.05 -0.13 0.28 16861.11 179.07 -0.14 0.30 14212.85 164.84 -0.15 0.33 12030.68 150.61 -0.16 0.35 11554.33 148.00 -0.18 0.38 11077.99 169.52 -0.19 0.40 10601.65 185.03 -0.20 0.43 10125.30 178.95 -0.21 0.45 9648.96 172.87 -0.23 0.48 9172.62 166.79 -0.24 0.50 8696.27 160.70 -0.25 0.53 8219.93 154.62 -0.12 0.55 7743.59 148.54 0.41 0.58 7267.24 143.83 0.94 0.60 7016.53 146.53 1.47 0.63 7422.52 149.23 2.00 0.65 7828.51 151.92 2.54 0.68 8234.50 154.62 3.07 0.70 8088.24 157.31 3.60 0.73 7577.96 144.91 4.13 0.75 7067.68 121.26 4.61 0.78 6557.40 97.61 4.32 0.80 6047.13 81.07 4.03 0.83 5536.85 76.46 3.75 0.85 5026.57 71.84 3.46 0.88 4516.29 67.23 3.18
