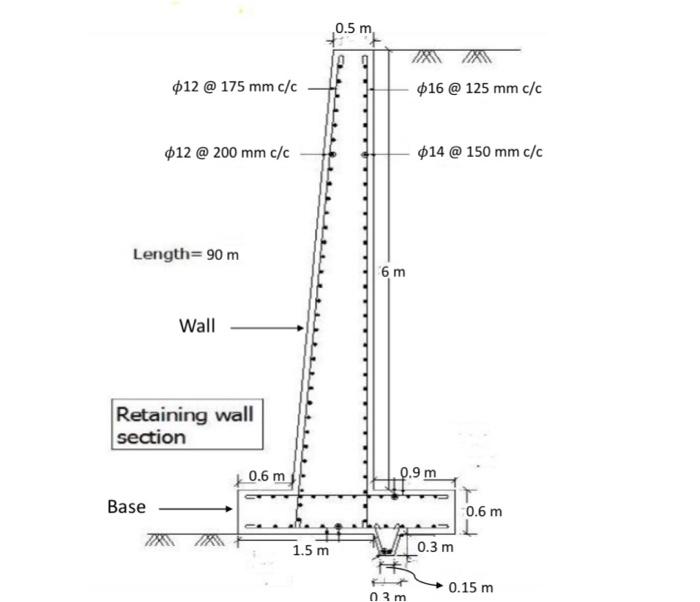

$12 @ 175 mm c/c $12 @ 200 mm c/c Length=90 m Wall Retaining wall section Base 0.6 m 1.5 m 0.5 m, 6 m $16 @ 125 mm c/c $14 @ 150 mm c/c 0.9 m Ħ 03m 0.3 m 0.6 m 0.15 m

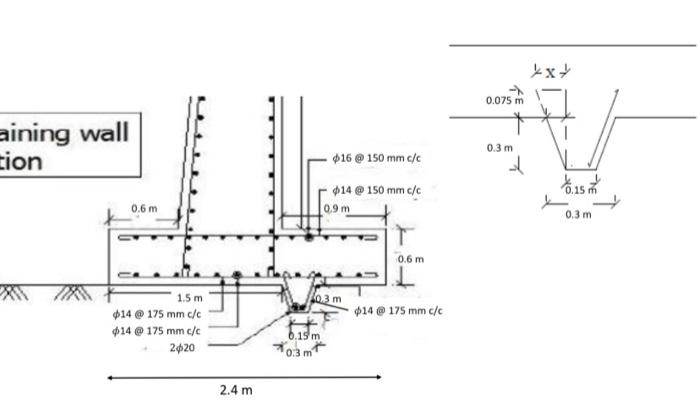

aining wall tion 0.6 m 1.5 m $14 @ 175 mm c/c $14 @ 175 mm c/c 2420 2.4 m 6.15 m $16 @ 150 mm c/c $14 @ 150 mm c/c 0.6 m $14 @ 175 mm c/c 0.9 m 0.3 m 0.075 m 0.3 m d 4x+ 0.15 0.3 m

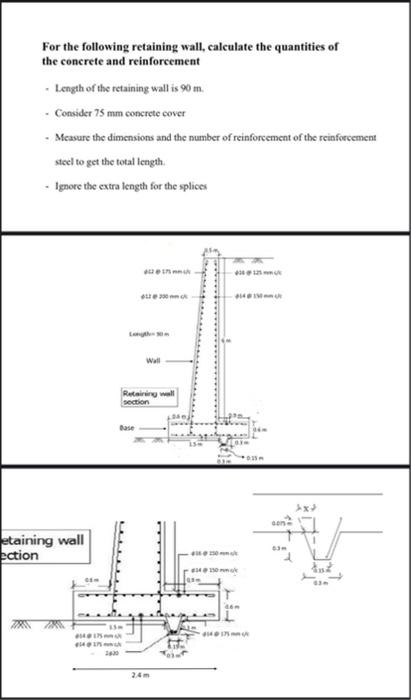

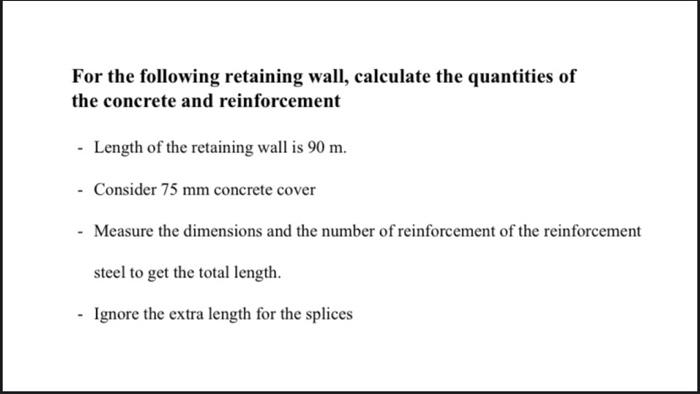

For the following retaining wall, calculate the quantities of the concrete and reinforcement - Length of the retaining wall is 90 m. - Consider 75 mm concrete cover - Measure the dimensions and the number of reinforcement of the reinforcement steel to get the total length. - Ignore the extra length for the splices
