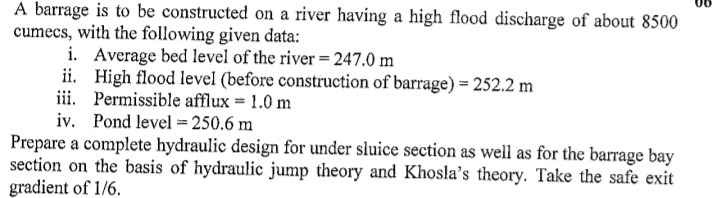

A barrage is to be constructed on a river having a high flood discharge of about 8500 cumecs, with the following given data: i. Average bed level of the river = 247.0 m ii. High flood level (before construction of barrage) = 252.2 m Permissible afflux = 1.0 m iii. iv. Pond level = 250.6 m Prepare a complete hydraulic design for under sluice section as well as for the barrage bay section on the basis of hydraulic jump theory and Khosla's theory. Take the safe exit gradient of 1/6.
