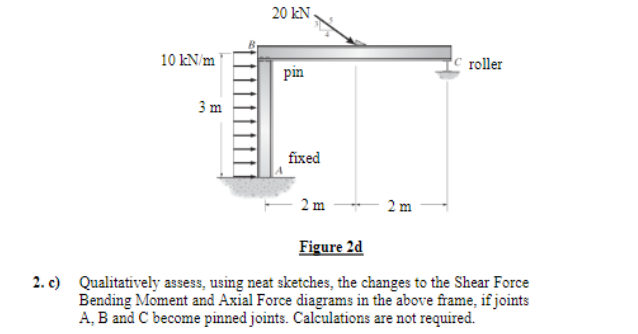

10 kN/m 3m 20 kN pin fixed roller 2m 2m Figure 2d 2. c) Qualitatively assess, using neat sketches, the changes to the Shear Force Bending Moment and Axial Force diagrams in the above frame, if joints A, B and C become pinned joints. Calculations are not required.
