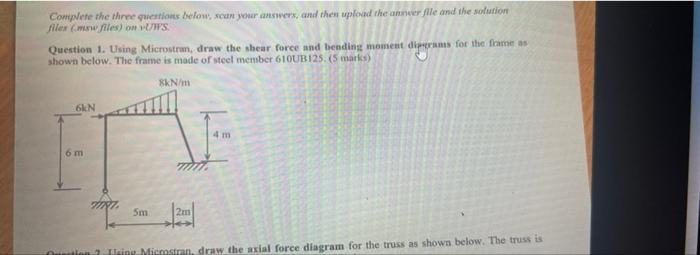

Complete the three questions below, scan your answers, and then upload the answer fille and the solution files (maw files) on vUWS. Question 1. Using Microstran, draw the shear force and bending moment diagrams for the frame as shown below. The frame is made of steel member 610UB125. (5 marks) 8kN/m 6kN 4 m m. 5m 2m Teine Microstran, draw the axial force diagram for the truss as shown below. The truss is 6 m
